JEEP WRANGLER JL GLADIATOR

75 LITRE AUXILIARY LONG RANGE FUEL TANK

The Wrangler is used as an icon all around the world for it’s off-roading abilities, reliability and it’s sleek look!

Like the JK Jeep before, for your JL we at Brown Davis are creating an auxiliary long-range fuel tank to sit alongside the OE tank, giving your Gladiator maximum reliability when traveling those long distances.

SPECIFICATIONS

PART NUMBER: JWJLGA1
TANK TYPE: AUXILIARY
CAPACITY: 75 LITRES
FILLER POINT: TWIN FILLER
TANK LOCATION: UNDER MIDDLE OF VEHICLE
MODIFICATIONS: NONE REQUIRED
PRODUCT COLOR: BLACK
COMMENTS: FITS WITH FACTORY EXHAUST

FACEBOOK

INSTAGRAM

YOUTUBE

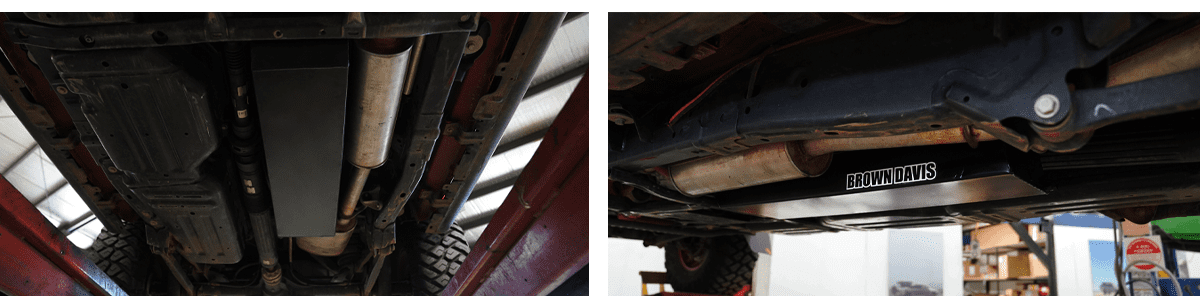

PHOTOS OF AUXILIARY FUEL TANK INSTALLED

TRANSFER SYSTEM

This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can cause pump failure. All parts and hardware for install are supplied

Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.

TANK FULL – FUEL NOT TRANSFERRING

THE LED GAUGE WILL SHOW TANK LEVEL AT ALL TIMES EVEN IF PUMP IS NOT RUNNING.

TANK FULL – FUEL TRANSFERRING

WHEN BUTTON IS PRESSED THE PUMP WILL BEGIN TRANSFERRING FUEL ACROSS TO YOUR VEHICLES MAIN TANK. THE ROUND YELLOW LED LIGHT SHOWS PUMP IS RUNNING

TANK HALF FULL – FUEL TRANSFERRING

AS FUEL IS BEING TRANSFERRED ACROSS THE LED LIGHTS WILL SHOW FUEL LEVEL REMAINING IN YOUR AUXILIARY TANK. AT ANY STAGE YOU CAN PRESS THE BUTTON AND STOP THE TRANSFER OF FUEL.

TANK EMPTY – FUEL TRANSFERRING

WHEN TANK IS COMPLETELY EMPTY A BUZZER WILL SOUND AS A REMINDED TO TURN THE PUMP OFF. LEAVING FUEL PUMPS ON FOR LONG PERIODS OF TIME CAN BURN THEM OUT

INSTRUCTIONS SUPPLIED

The Brown Davis Jeep Wrangler JL Gladiator Auxiliary Fuel Tanks will come with instructions that walk you through the installation. Some fuel system and wiring knowledge is needed for this install
