TOYOTA LANDCRUISER 80 SERIES- FJ80, HZJ80, FZJ80, HDJ80, HZJ80

LONG RANGE FUEL TANKS

The Toyota Landcruiser 80 Series has cemented itself as one of the strongest and most reliable vehicles to come into the 4wd market. This makes it a popular vehicle of choice for people planing long distance travelling.

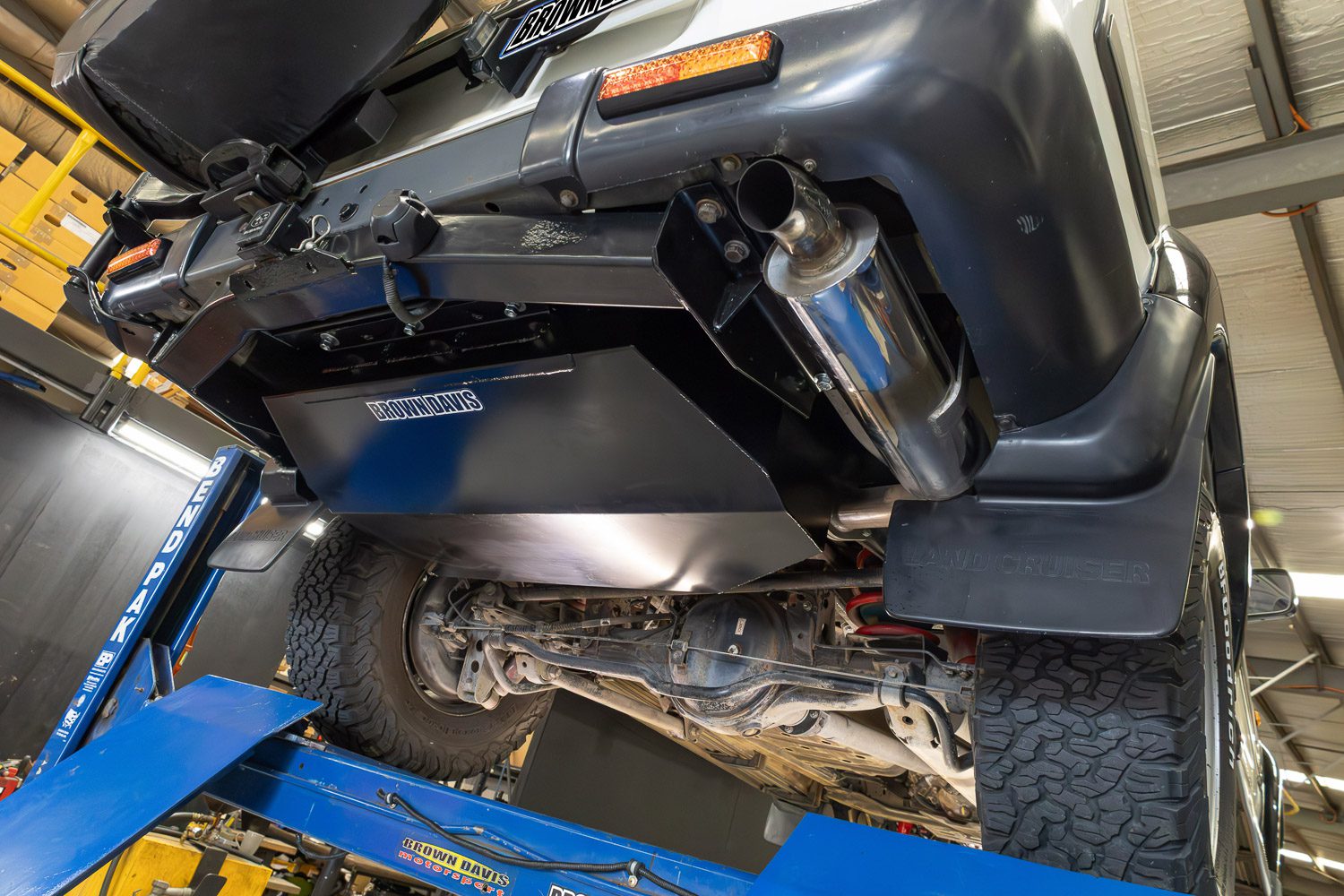

We offer 2 types of rear mount aftermarket long range fuel tanks for the Cruiser 80 Series depending on your vehicles fuel system configuration. For vehicles fitted with the 55 litre sub tank we offer a 168lt (45 gallon) replacement fuel tank that utilizes the components from the sub tank. For vehicles with no sub tank we offer a 168lt (45 gallon) Transfer Auxiliary long range fuel tank. Both tanks are very similar shape and are located behind the vehicles rear axle.

Specifications / Options

180LT REPLACEMENT TANK

Models WITH rear sub tank

PART NUMBER: TL80R1
TANK TYPE: REPLACEMENT
CAPACITY: 180 LITRE
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES STANDARD 55L SUB TANK
FITTING TIME: 3 hour/s
MODIFICATIONS: REMOVE SPARE WHEEL
COMMENTS: SOME MODIFICATIONS MAY BE REQUIRED FOR VEHICLES WITH AFTERMARKET EXHAUSTS
PRODUCT COLOR: BLACK

168LT (45 GALLON) AUXILIARY TANK

Models WITHOUT rear sub tank

PART NUMBER: TL80A1
TANK TYPE: TRANSFER AUXILIARY
CAPACITY: 168 LITRE (45 GALLONS)
FILLER POINT: TWIN FILLER (SUPPLIED)
FUEL SUPPLY METHOD: TRANSFERS TO VEHICLES MAIN TANK

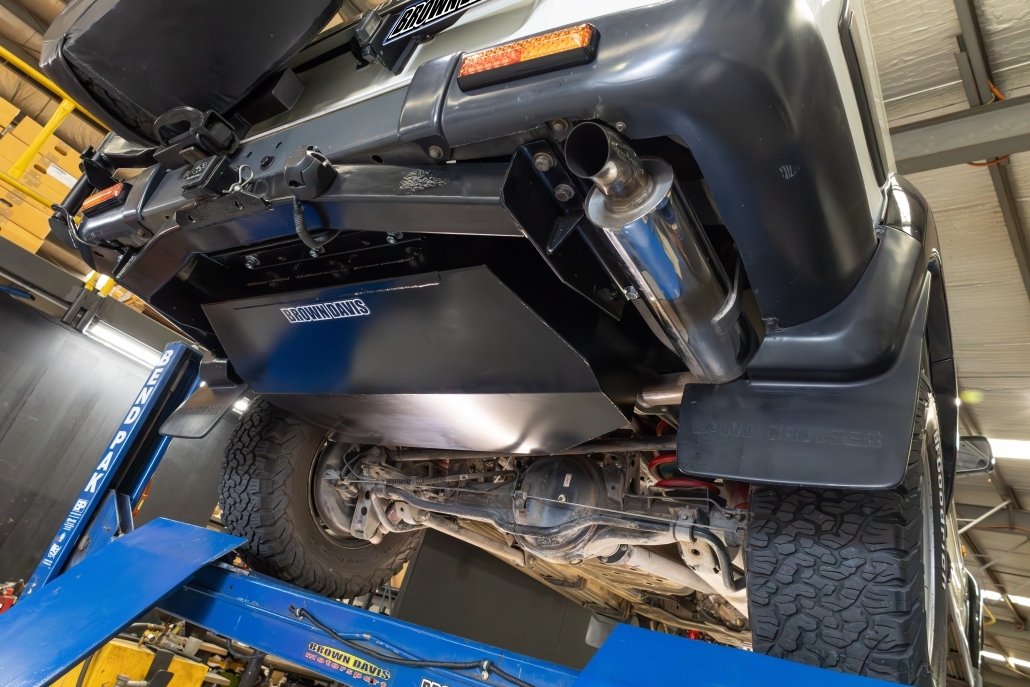

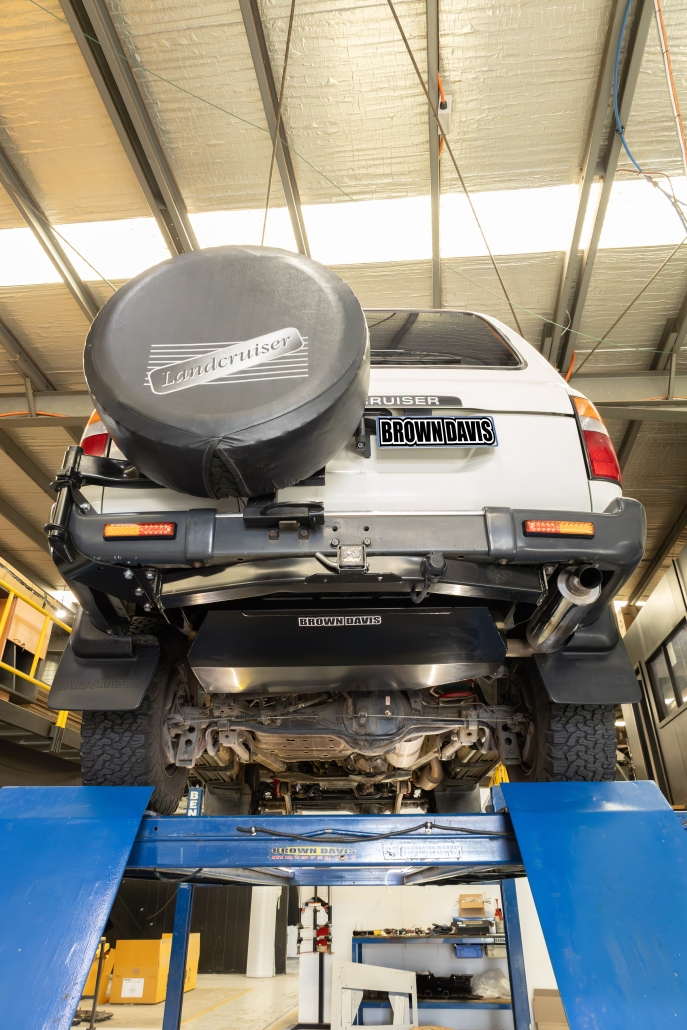

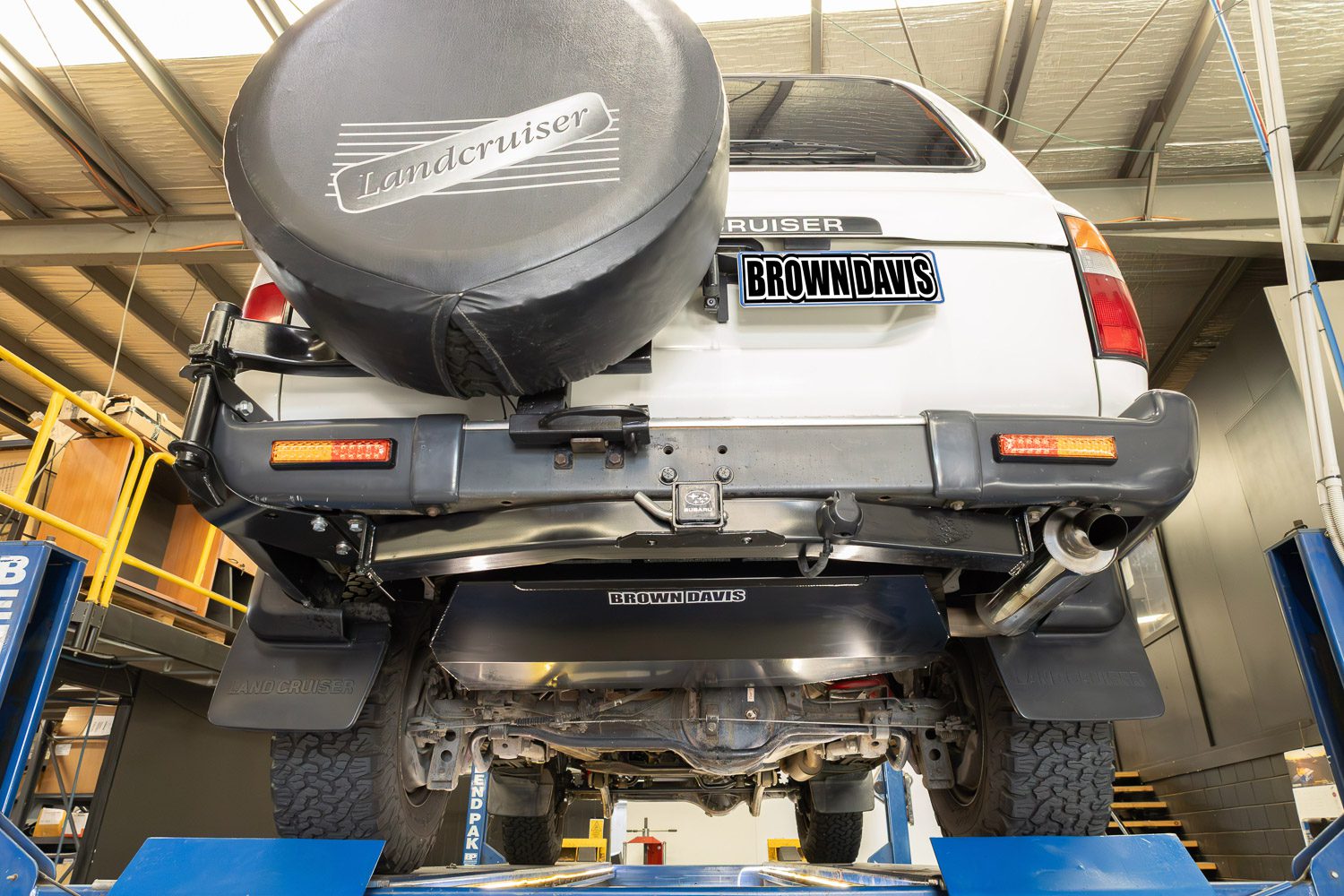

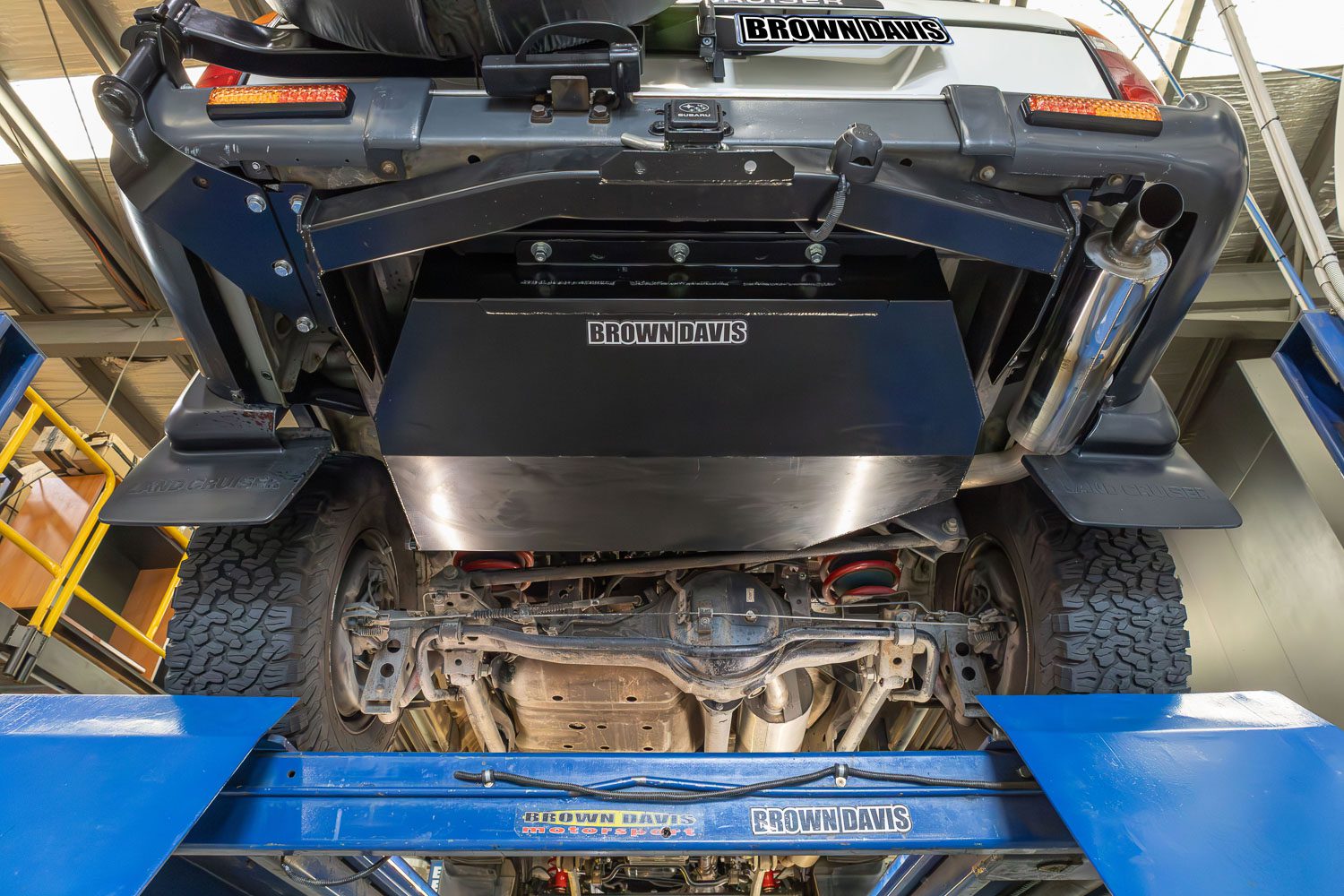

TANK LOCATION: BEHIND REAR AXLE- SPARE WHEEL RELOCATE
FITTING TIME: 5 hour/s
MODIFICATIONS: REMOVE SPARE WHEEL
COMMENTS: ALL HARDWARE SUPPLIED (PUMP, GAUGE, SENDER) – SOME MODIFICATIONS MAY BE REQUIRED FOR VEHICLES WITH AFTERMARKET EXHAUSTS
PRODUCT COLOUR: BLACK

Key features of the Toyota Landcruiser 80 Series long range fuel tanks

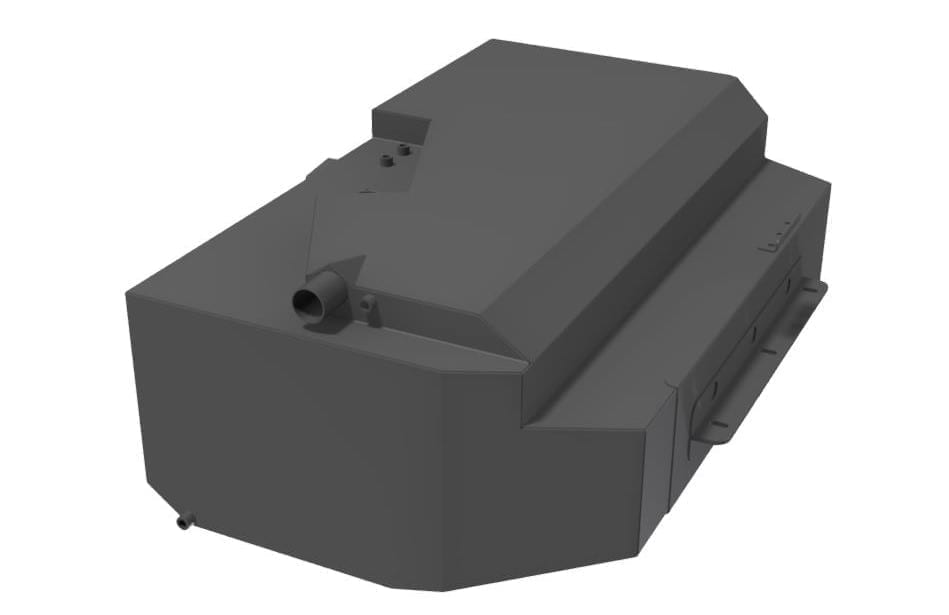

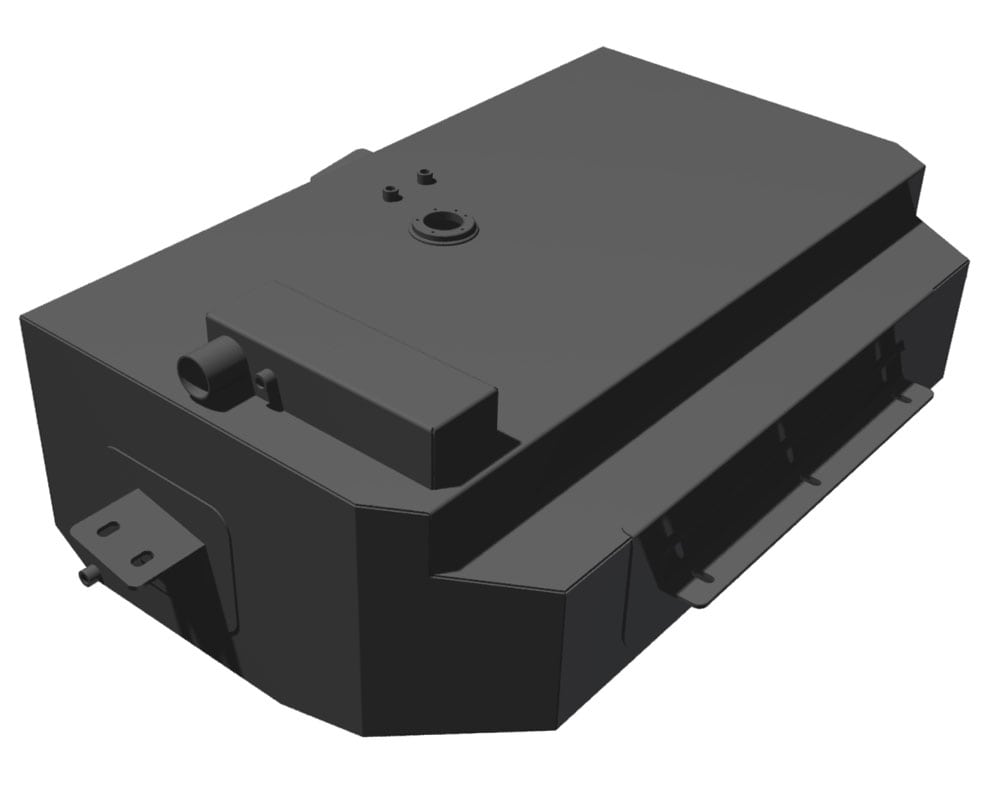

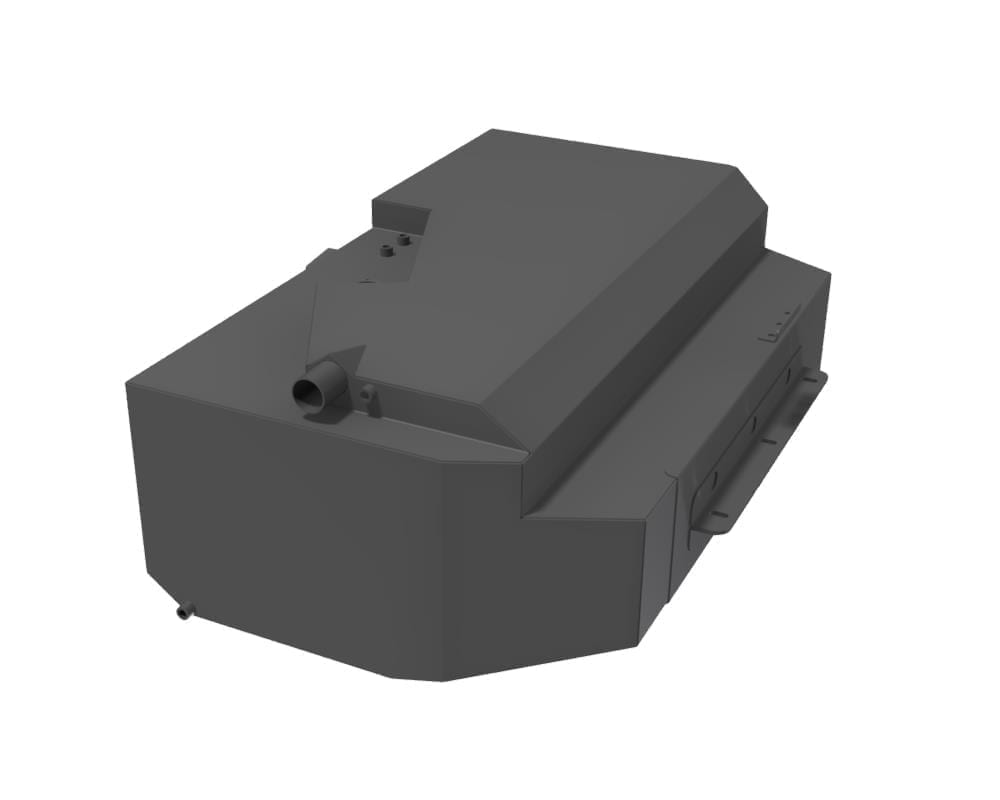

168LT (45 GALLON) REPLACEMENT TANK

Models WITH rear sub tank

1
2
3
4
5
1

Tapered approach and departure angle to reduce frontal impact and improve ramp over clearance

2

Filler Tube, connects to vehicles original filling point

3

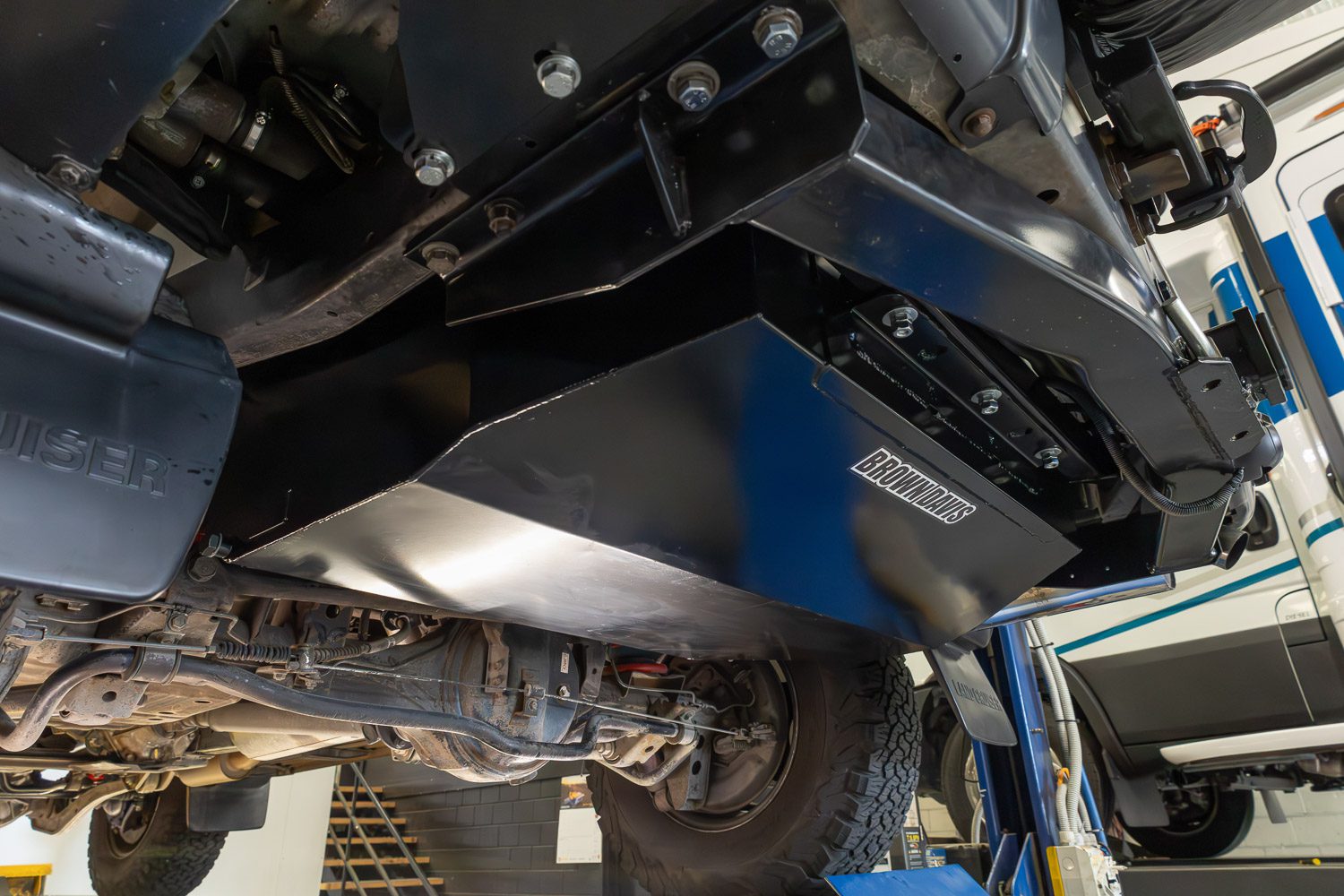

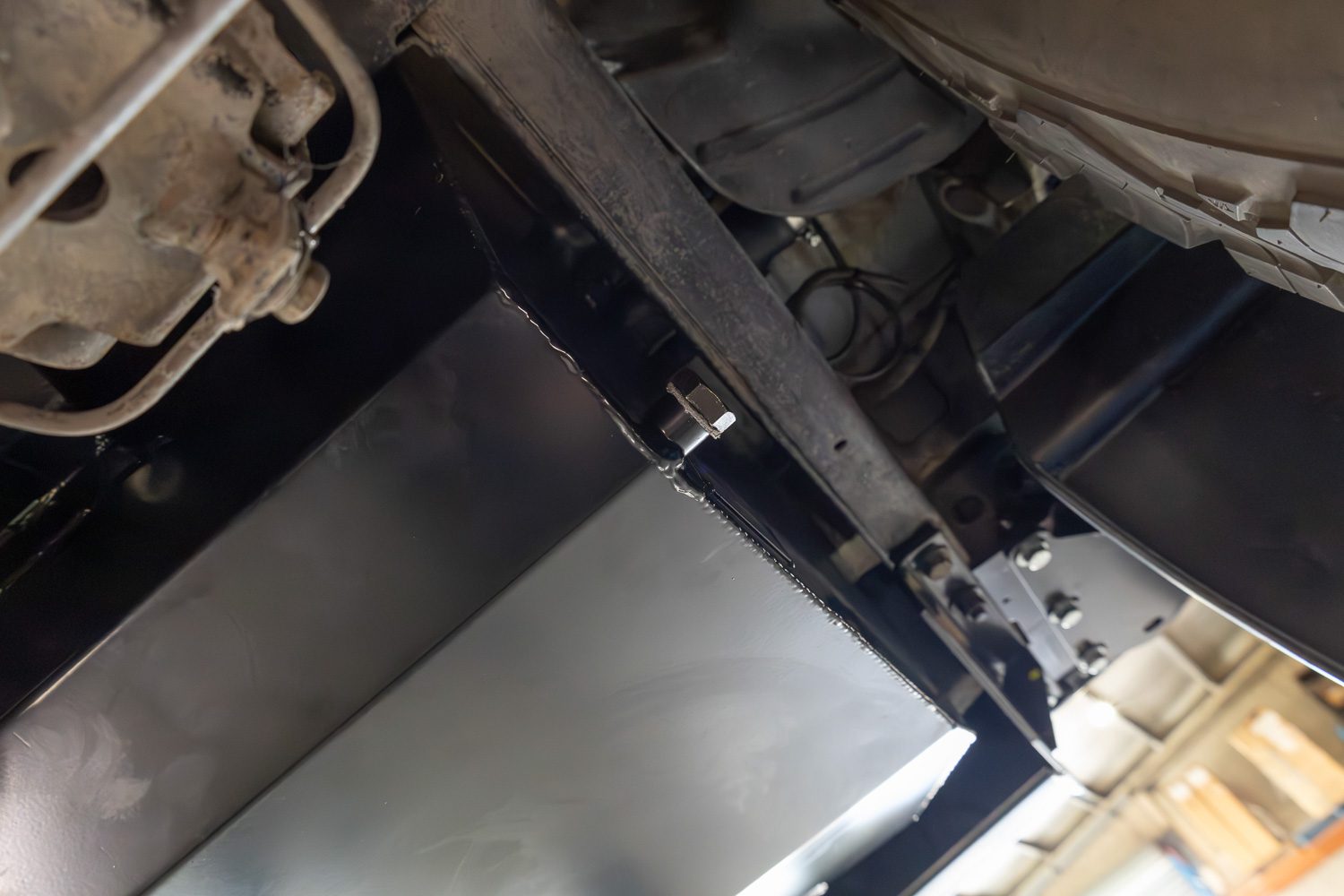

Double skinned and gusseted brackets for mounting strength

4

Drain Plug for draining bad fuel

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

168LT (45 GALLON) AUXILIARY TANK

Models WITHOUT rear sub tank

1
2
3
4
5
6
1

Tapered approach and departure angle to reduce impacts and improve ramp over clearance

2

Fuel pump sender flange designed except supplied sender unit to show fuel level (supplied in kit)

3

Fuel tank filler- Attached to supplied twin filler

4

Drain plug- for draining dodge fuel

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Double skinned and gusseted brackets

Fuel Tank Capacity

  • Standard Vehicles
  • Models with sub tank
    90+55 = 145 litres Total
  • Models without sub tank
    90 litres total
  • With BD tank fitted
  • 90+ BD 168lt Replacement
    258 litres total
  • 90 + BD 168lt Auxliary
    258 litres total
  • Percentage Increase
  • 78%
    Increase in Capacity
  • 187%
    Increase in Capacity

Compatibility

Confirmed fitment

  • Models

    Confirmed on all models- Petrol and Diesel

Standard vehicles features

  • Fuel Gauge

    Sub tank replacement: fuel gauge will sit on full for a small amount of time. Fuel gauge is designed to have an accurate empty.

    No Sub tank auxiliary: The standard fuel tank functions are not affected. As fuel is transferred from BD tank into main tank the standard tank will adjust to new fuel level

Aftermarket Accessories

  • Suspension

    No knowledge of any suspension clearance problems. Confirmed with ARB, TJM, EFS and Ironman

  • Exhuasts

    Fits with most aftermarket exhuasts – fits most 3′ exhaust that follow standard exhaust route

International vehicles

  • Confirmed fitment

    -Fitment of BD Auxiliary tank has been confirmed on USA Spec vehicles. In the USA our tanks are for Offroad use only. Local laws should be checked before filling BD tank.

AUXILIARY FUEL TANK GAUGE AND BUZZER (SUPPLIED WITH AUXILIARY KIT)

ONLY USED FOR MODELS WITHOUT SUB TANK

Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.

HOW IT WORKS

TANK FULL – FUEL NOT TRANSFERRING

THE LED GAUGE WILL SHOW TANK LEVEL AT ALL TIMES EVEN IF PUMP IS NOT RUNNING.

TANK FULL – FUEL TRANSFERRING

WHEN BUTTON IS PRESSED THE PUMP WILL BEGIN TRANSFERRING FUEL ACROSS TO YOUR VEHICLES MAIN TANK. THE ROUND YELLOW LED LIGHT SHOWS PUMP IS RUNNING

TANK HALF FULL – FUEL TRANSFERRING

AS FUEL IS BEING TRANSFERRED ACROSS THE LED LIGHTS WILL SHOW FUEL LEVEL REMAINING IN YOUR AUXILIARY TANK. AT ANY STAGE YOU CAN PRESS THE BUTTON AND STOP THE TRANSFER OF FUEL.

TANK EMPTY – FUEL TRANSFERRING

WHEN TANK IS COMPLETELY EMPTY A BUZZER WILL SOUND AS A REMINDED TO TURN THE PUMP OFF. LEAVING FUEL PUMPS ON FOR LONG PERIODS OF TIME CAN BURN THEM OUT

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.
