TOYOTA LANDCRUISER 79 SERIES SINGLE CAB (2016-PRESENT)

INDEPENDENT FEED AUXILIARY LONG RANGE FUEL TANK

The Brown Davis 110lt auxiliary fuel tank increases the Toyota Landcruiser 79 Single Cab from 130lt fuel capacity to a massive 240lt. The Brown Davis auxiliary tank is located in the middle of the vehicle, ideal for weight distribution.

The Landcruiser 79 Auxiliary Tank fits with most aftermarket single exhausts. Twin Exhausts however may require alteration. The base of the Brown Davis tank follows the line of the vehicles chassis, having no effect on the vehicles ground clearance or ramp over.

Specifications

PART NUMBER: TL79SCA1
TANK TYPE: AUXILIARY
CAPACITY: 110 LITRE
FILLER POINT: DRIVERS SIDE BEHIND CABIN – FILLER SUPPLIED
FUEL SUPPLY METHOD: INDEPENDENT FEED
TANK LOCATION: UNDER MIDDLE OF VEHICLE- DRIVERS SIDE
FITTING TIME: 5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: DESIGNED TO FIT WITH STANDARD EXHAUST- SOME AFTERMARKET EXHAUST REAR HANGERS MAY INTERFERE WITH CROSSMEMBER

INDEPENDENT FEED SYSTEM

PART NUMBER: TL79SCA1

This system is designed as a change over system, which means at the flick of a switch the driver can independently feed the engine directly from either the main or Brown Davis auxiliary tank. This allows the operator to empty the rear tank and feed the engine directly off the Brown Davis auxiliary tank. This gives you the ability to manage weight distribution in keeping weight forward of the rear axle. This is the same system as the early 79 Series single cabs and 100 series with twin tanks.  All parts and hardware for install are supplied.

Auxiliary Fuel Gauge
LED Auxiliary gauge supplied in the independent feed system allowing you to monitor the auxiliary fuel level at all times. Installed typically under the dash above the gear stick.

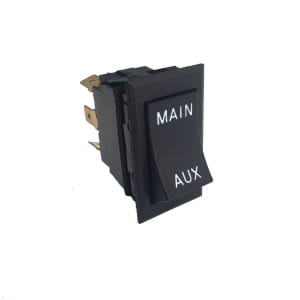

Rocker Switch
MAIN/AUX rocker switch which allows you to quickly choose which tank you wish to feed the engine from. Installed in a factory Toyota switch knockout.

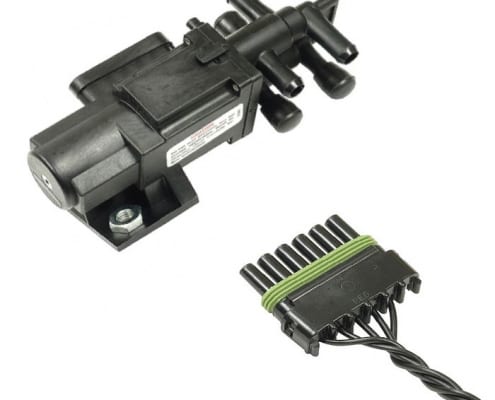

6 Port Change Over Valve
6 port change over valve, supplied in the kit in which makes the independent feed system possible.

Function:

  • Feed from main tank
  • Return to main tank
  • Feed from auxiliary tank
  • Return to auxiliary tank
  • Feed engine
  • Return from engine

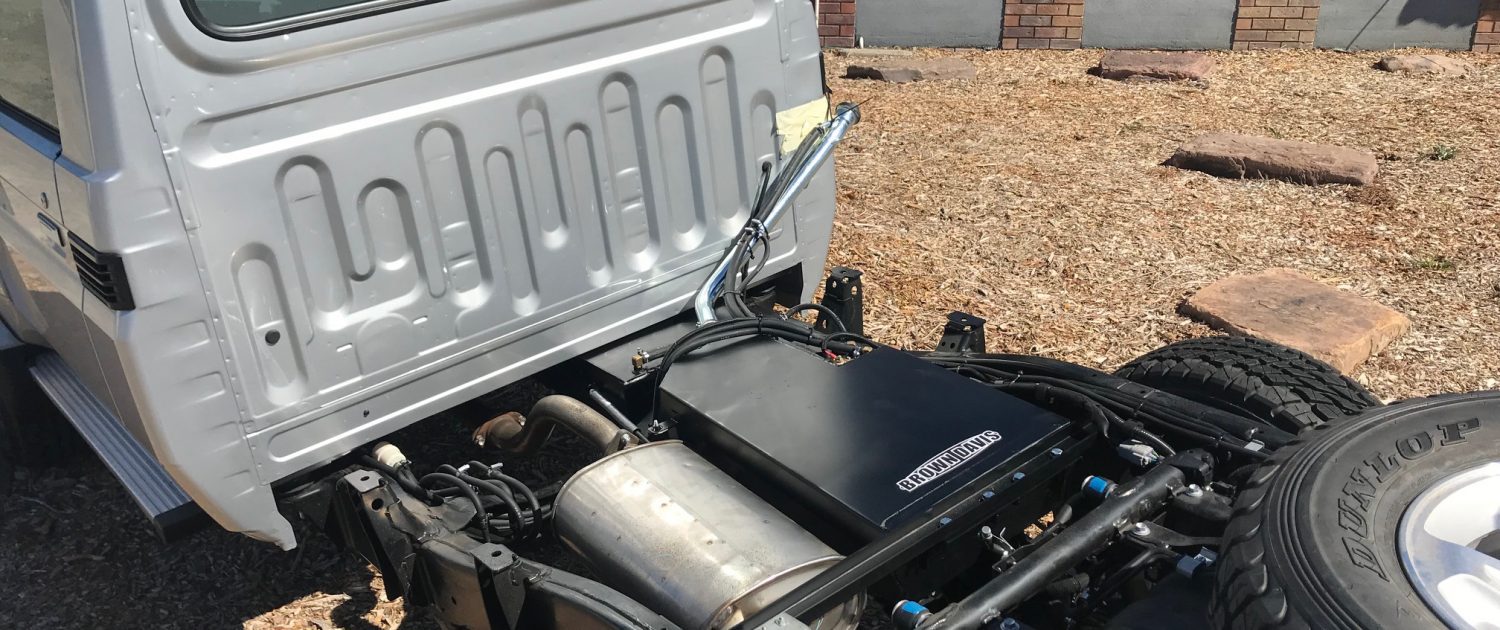

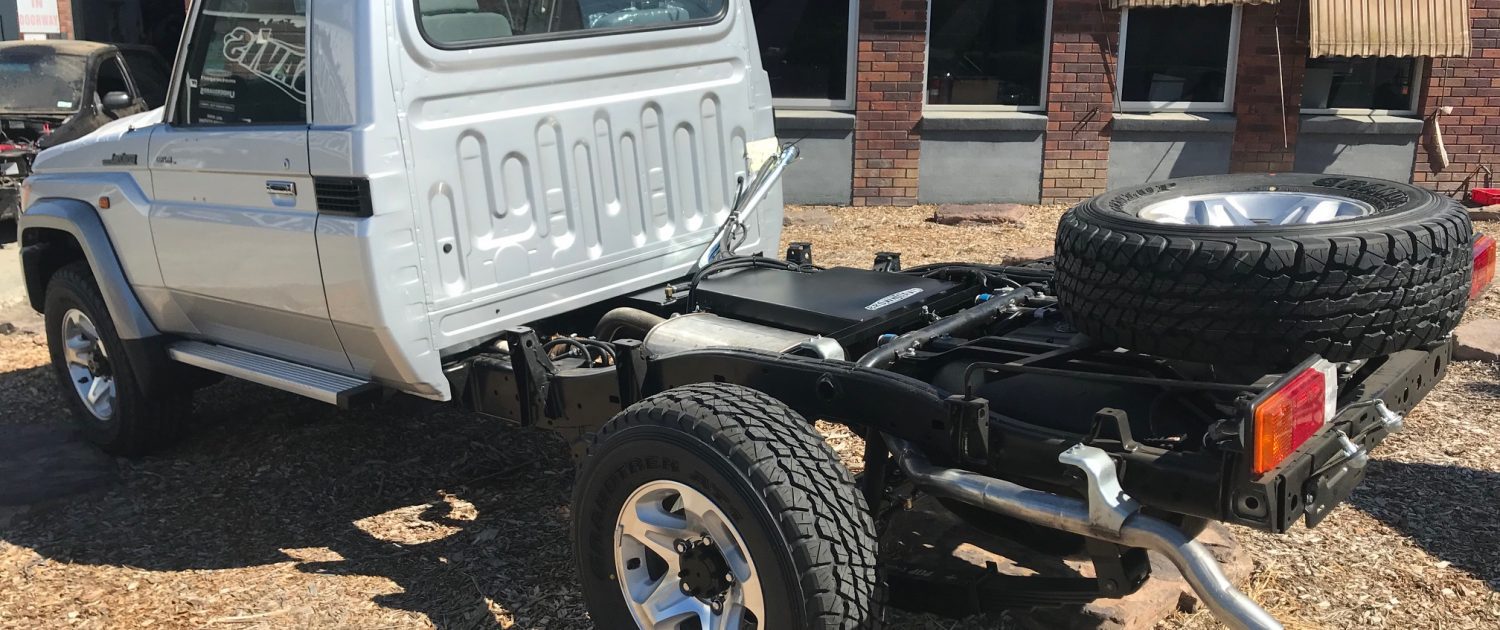

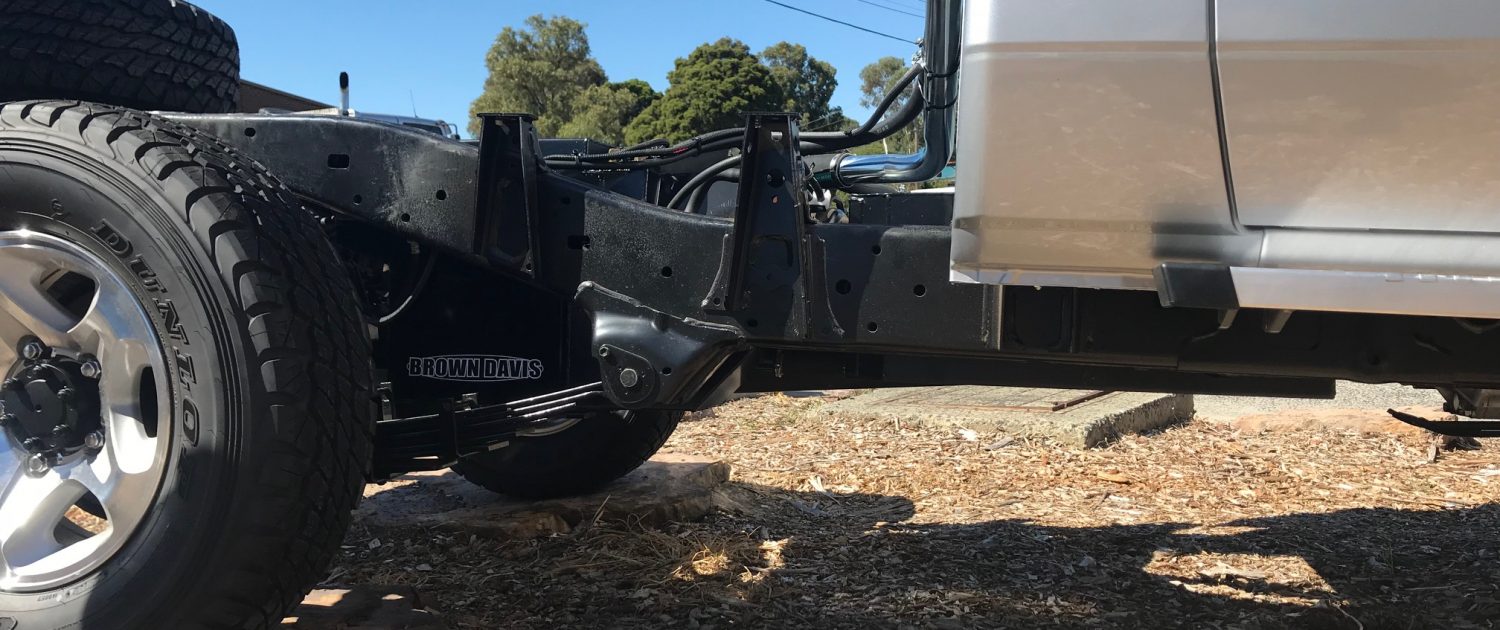

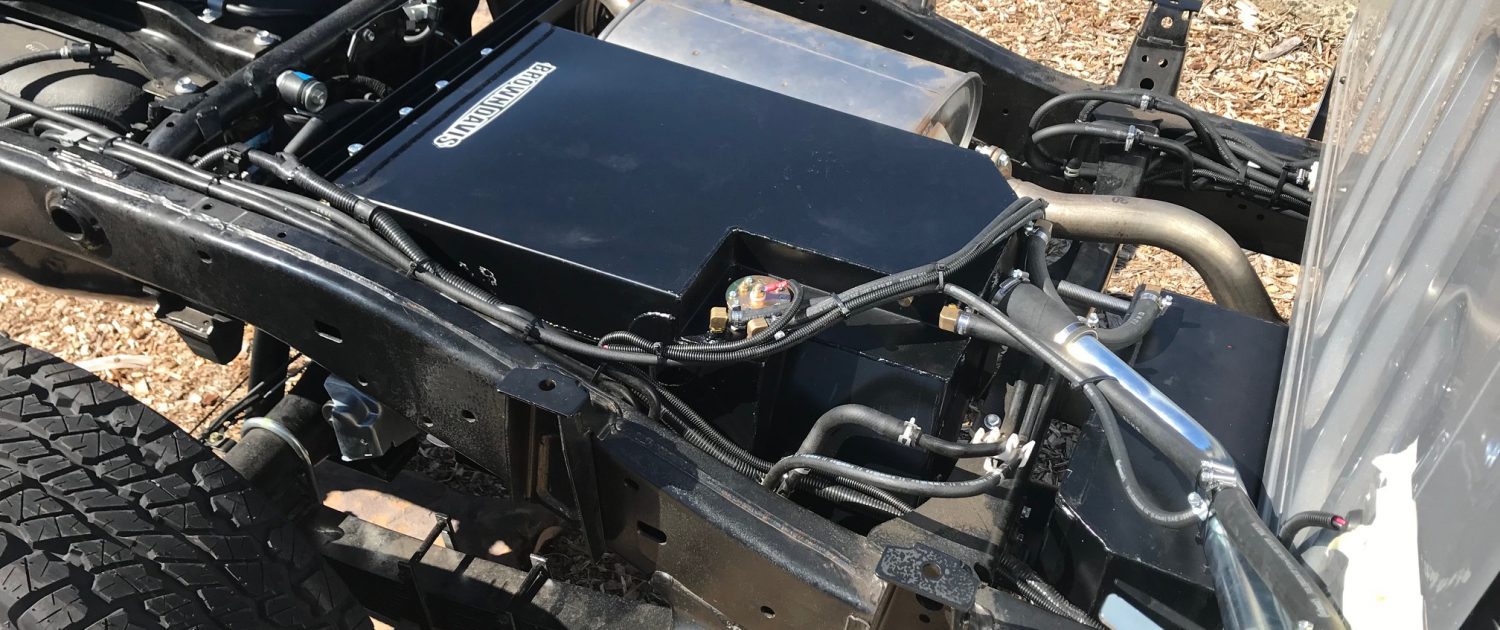

Photos of the Tank Installed

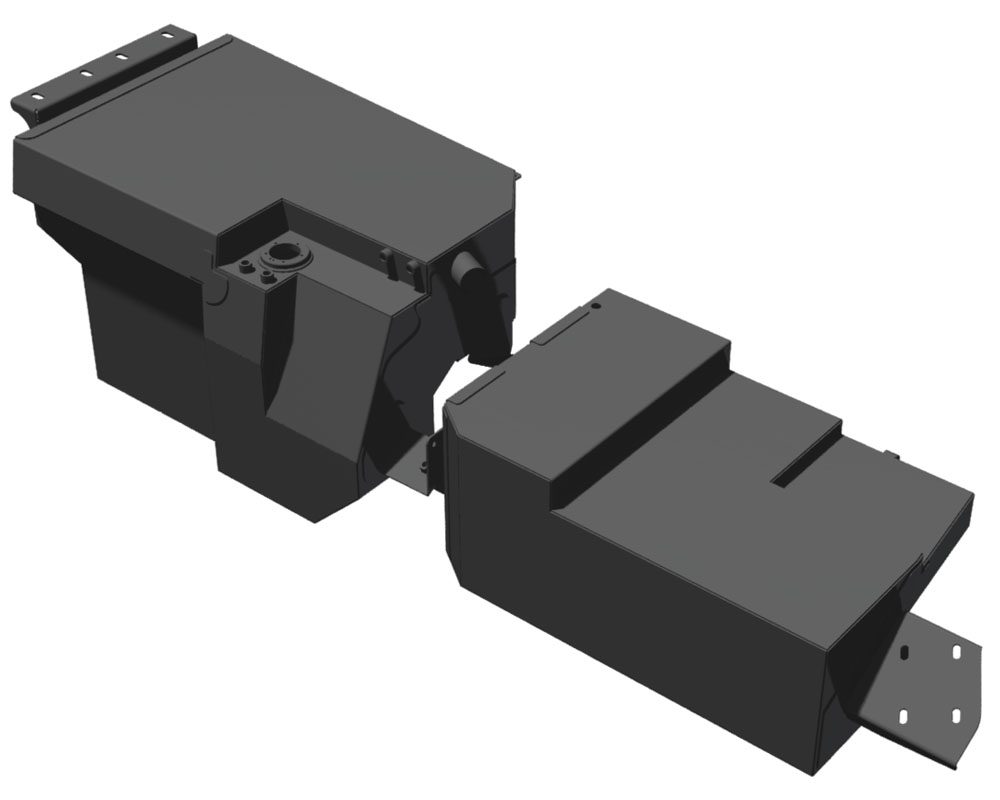

Key features of the Toyota 79 Series Auxiliary Long Range Fuel Tank

1
2
3
4
5
6
7
1

Internal baffling system to prevent fuel slosh and strengthen tank structure

2

Gusseted brackets with double thickness pads to spread tank mounting loads

3

Fuel sender unit flange – Excepts supplied sender unit to give fuel level reading

4

filler tube, connects to supplied filler and locking filler cap

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Fuel Pick up- supplies fuel to engine

7

Return- returns fuel from engine in

Tough tourers need a tough tank

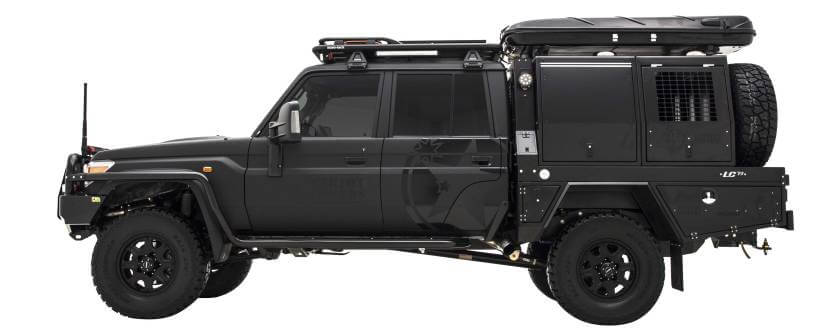

Patriot Campers use Brown Davis Long Range Fuel Tanks in their 79 series Super Tourers. They push our gear to the limits towing camper trailers alover the country.

Justin – Owner of Patriot Campers

“Patriot Campers has always taken product testing to the limits and hundreds of thousands of kilometres across this country quickly sorts out product faults. We have always run Brown Davis tanks in our tow vehicles.
Being designed and tested in Australia and the company having a strong motorsport heritage, Brown Davis are the only brand of tanks we offer to our customers”

Compatibility

Confirmed fitment

  • Models

    Toyota Landcruiser Single Cab 79 Series 2016-Present

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN.

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Top of tank sits at same high as chassis tray mounts

  • Exhuasts

    Fits with most aftermarket exhausts – Larger single exhausts are fine. Some dual exhausts may interfere.

Instructions supplied

The Brown Davis Toyota Landcruiser 79 Series Auxiliary Fuel Tanks comes instructions that walk you through the installation. Some fuel system and wiring knowledge is needed for this install

Fuel Tank Capacity / Driving Range

FIGURES BASED ON 79 SERIES SINGLE CAB– AS QUOTED BY TOYOTA

10.7 LITRES PER 100KM

  • –
    –
  • 130 Litre Standard Tank
  • 240lt total
    130lt Standard tank combined with 110 Litre Brown Davis Long Range Fuel Tank
  • Driving Range
  • Driving Range
    1215KM
  • Driving Range
    2242.99km
  • Percentage Increase with
    Brown Davis Long Range Fuel Tank
  • 130 Litre Standard Tank
  • 84.6%
    Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

110LT Auxiliary fuel tank – 82.6% increase

NEED EVEN MORE FUEL?

Combine the 110 Litre Auxiliary Fuel Tank with the 185 Litre Replacement

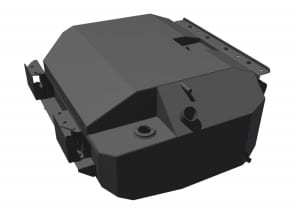

185 LITRE REPLACEMENT LONG RANGE FUEL TANK

TOYOTA LANDCRUISER – 79 SERIES SINGLE CAB (2016-PRESENT) – MODELS WITH 130LT REAR TANK

PART NUMBER: TL79R5
TANK TYPE: REPLACEMENT
CAPACITY:185 LITRE
FILLER POINT:STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES REAR 130LT STANDARD TANK
FITTING TIME: 3.5 hour/s
