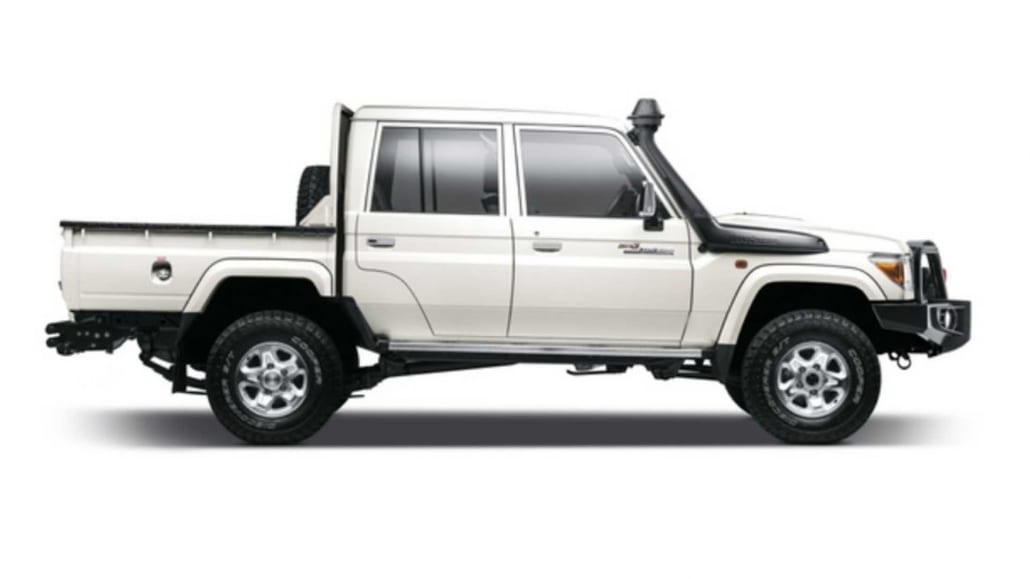

TOYOTA LANDCRUISER 79 SERIES DUAL CAB

110 LITRE AUXILIARY LONG RANGE FUEL TANKS

FITMENT CONFIRMED ON 2024 V8 ENGINE – DOES NOT FIT 2.8LT ENGINE

The Brown Davis 110lt auxiliary fuel tank takes the Toyota Landcruiser 79 Dual Cab from 130lt fuel capacity to a massive 240lt. The Brown Davis auxiliary tank is located in the middle of the vehicle, ideal for weight distribution.

The Landcruiser 79 Dual Cab Auxiliary Tank fits with most aftermarket single exhausts. Twin Exhausts however may require alteration. The base of the Brown Davis tank follows the line of the vehicles chassis, having no effect on the vehicles ground clearance or ramp over.

Specifications

TANK TYPE: AUXILIARY
CAPACITY: 110 LITRE
PART NUMEBR: TL79A4 – Independent Feed
TL79A2 – Transfer System

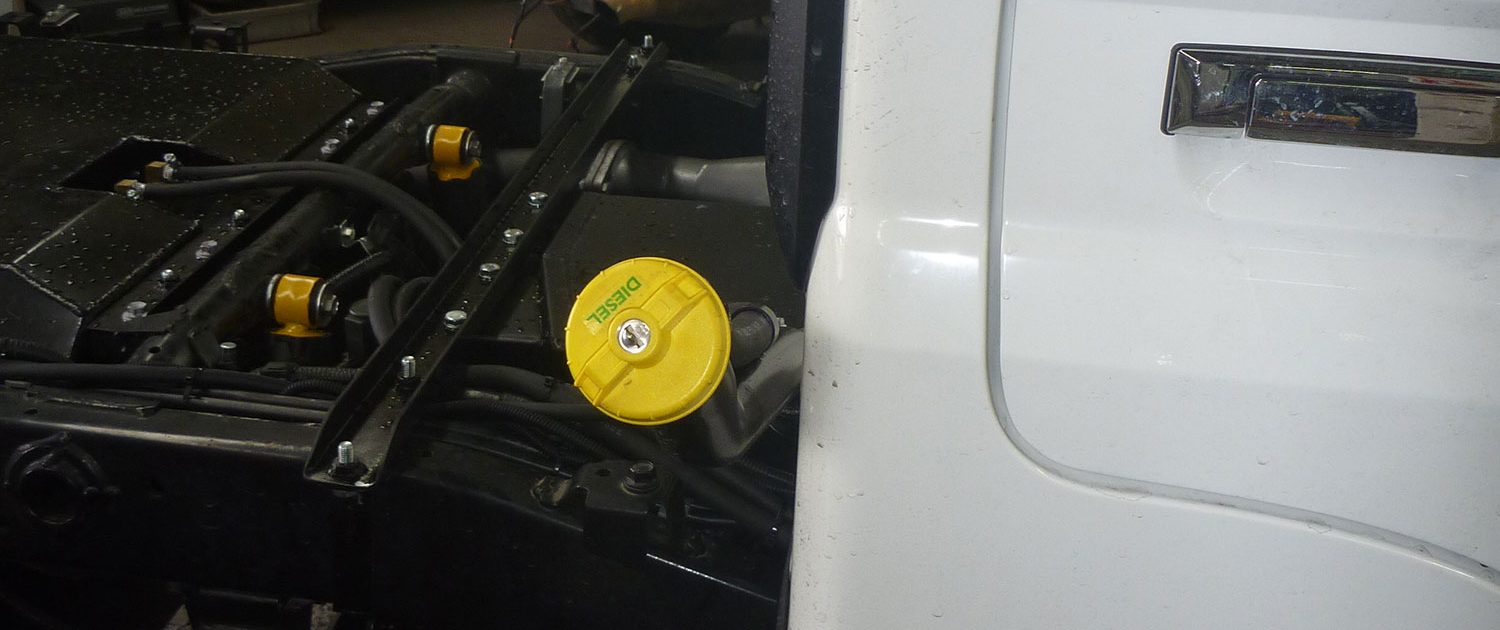

FILLER POINT: DRIVERS SIDE BEHIND CABIN
TANK LOCATION: UNDER MIDDLE OF VEHICLE
FITTING TIME: 5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: NO EXHAUST MODIFICATIONS REQUIRED

FUEL SYSTEM OPTIONS

OPTION 1: INDEPENDENT FEED SYSTEM (DIESEL ONLY) (MOST POPULAR)

PART NUMBER: TL79A4

This system is designed as a change over system, which means at the flick of a switch the driver can independently feed the engine directly from either the main or Brown Davis auxiliary tank.  This allows you to manage weight distribution by draining the rear tank first to keep weight forward of the rear axle. This is the same system as the early 79 Series single cabs and 100 series with twin tanks.  All parts and hardware for install are supplied.

LED Auxiliary Gauge

Led gauge supplied in the independent feed system to monitor the fuel level in the auxiliary tank. Installed typically under the dash above the gear stick in a 79 series

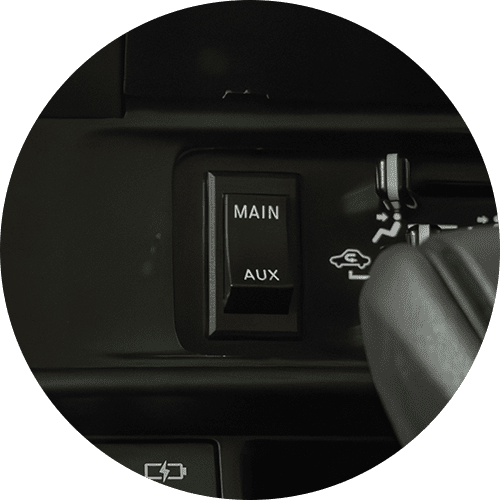

MAIN/AUX Rocker Switch

Allows you to quickly choose which tank you wish to feed the engine from. Installed in a factory Toyota switch knockout.

6 Port Change Over Valve

Function:

  • Feed from main tank
  • Return to main tank
  • Feed from auxiliary tank
  • Return to auxiliary tank
  • Feed engine
  • Return from engine
Follow a manual added link

Follow a manual added link

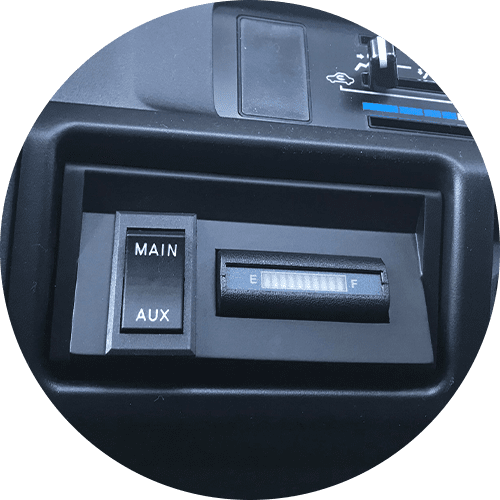

Ash / Cigarette Tray Insert

Keep your dash and console looking clean! Brown Davis has now developed a Ash Tray insert to mount your auxiliary tanks gauge and MAIN/AUX switch!

  • Black console insert
  • Compatible switch and gauge

OPTION 2: TRANSFER SYSTEM (PETROL AND DIESEL)

PART NUMBER: TL79A2

This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can course pump failure. All parts and hardware for install are supplied

Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.

TANK FULL – FUEL NOT TRANSFERRING

THE LED GAUGE WILL SHOW TANK LEVEL AT ALL TIMES EVEN IF PUMP IS NOT RUNNING.

TANK FULL – FUEL TRANSFERRING

WHEN BUTTON IS PRESSED THE PUMP WILL BEGIN TRANSFERRING FUEL ACROSS TO YOUR VEHICLES MAIN TANK. THE ROUND YELLOW LED LIGHT SHOWS PUMP IS RUNNING

TANK HALF FULL – FUEL TRANSFERRING

AS FUEL IS BEING TRANSFERRED ACROSS THE LED LIGHTS WILL SHOW FUEL LEVEL REMAINING IN YOUR AUXILIARY TANK. AT ANY STAGE YOU CAN PRESS THE BUTTON AND STOP THE TRANSFER OF FUEL.

TANK EMPTY – FUEL TRANSFERRING

WHEN TANK IS COMPLETELY EMPTY A BUZZER WILL SOUND AS A REMINDED TO TURN THE PUMP OFF. LEAVING FUEL PUMPS ON FOR LONG PERIODS OF TIME CAN BURN THEM OUT

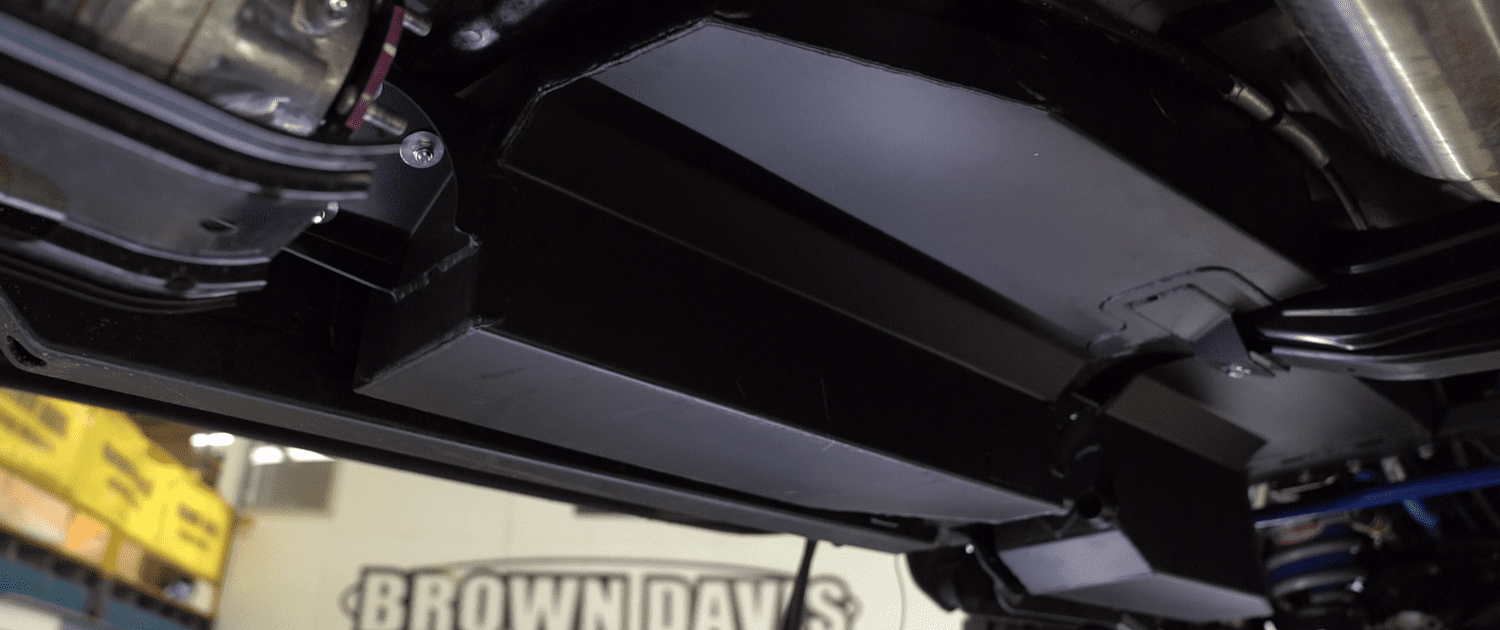

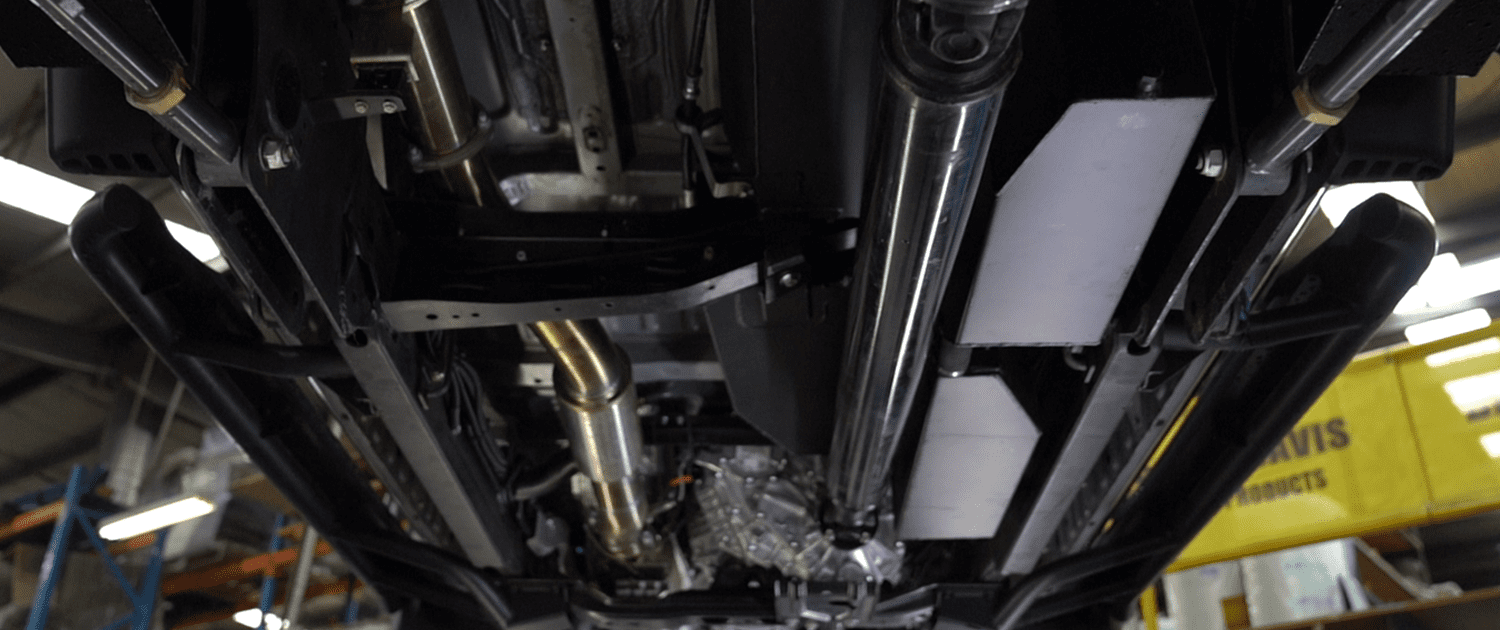

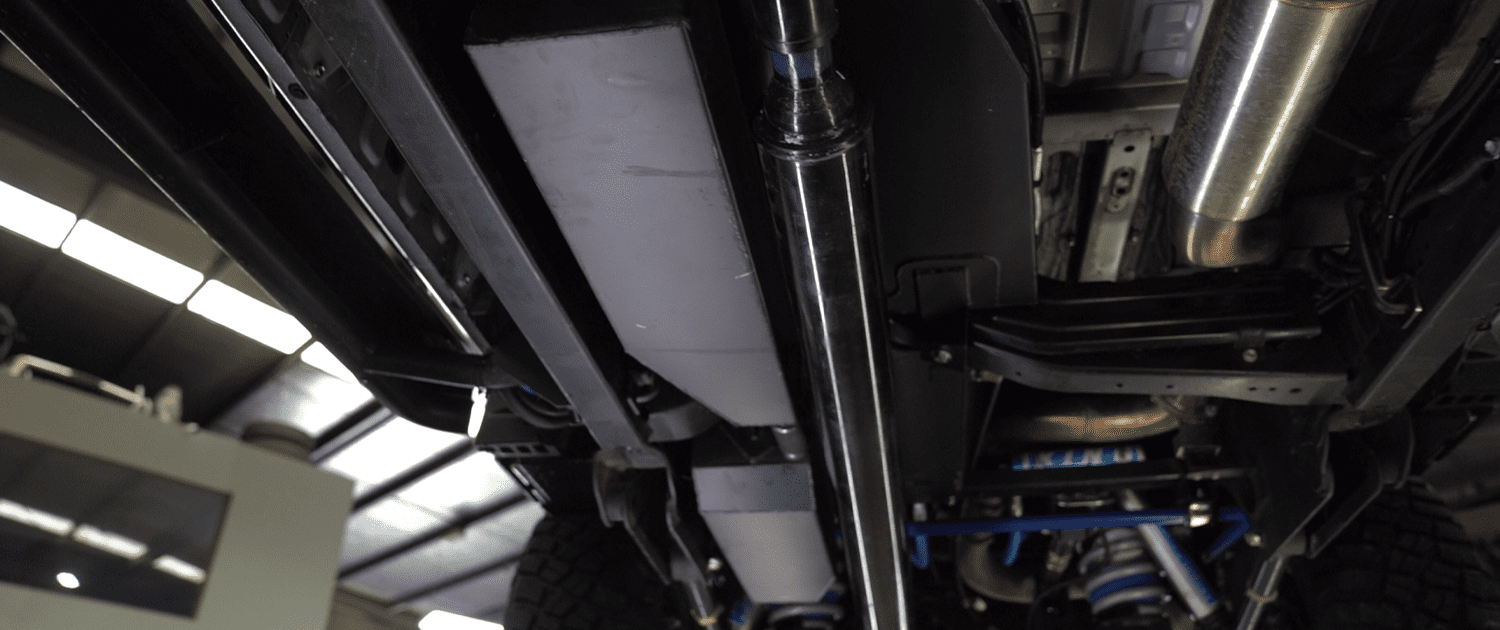

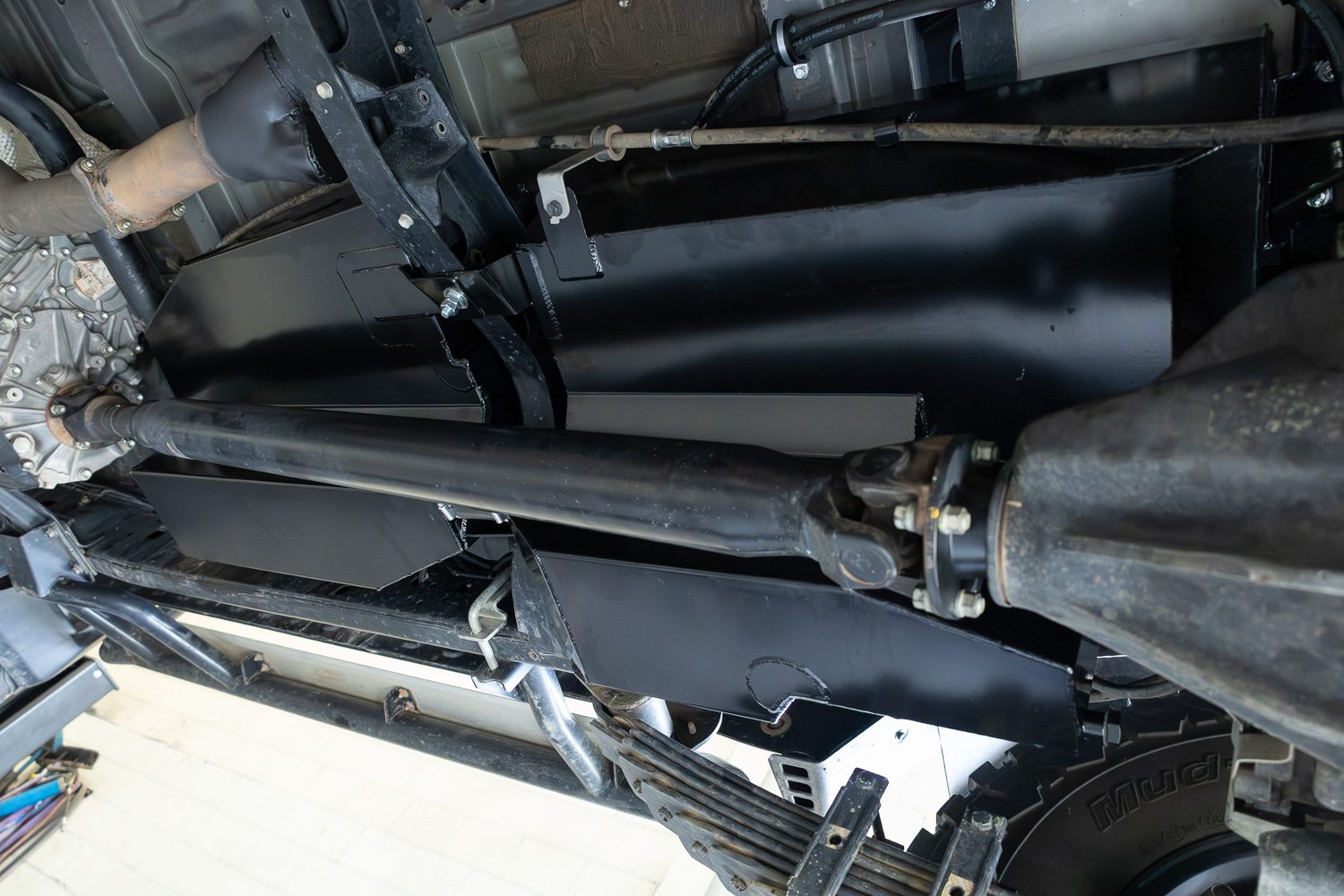

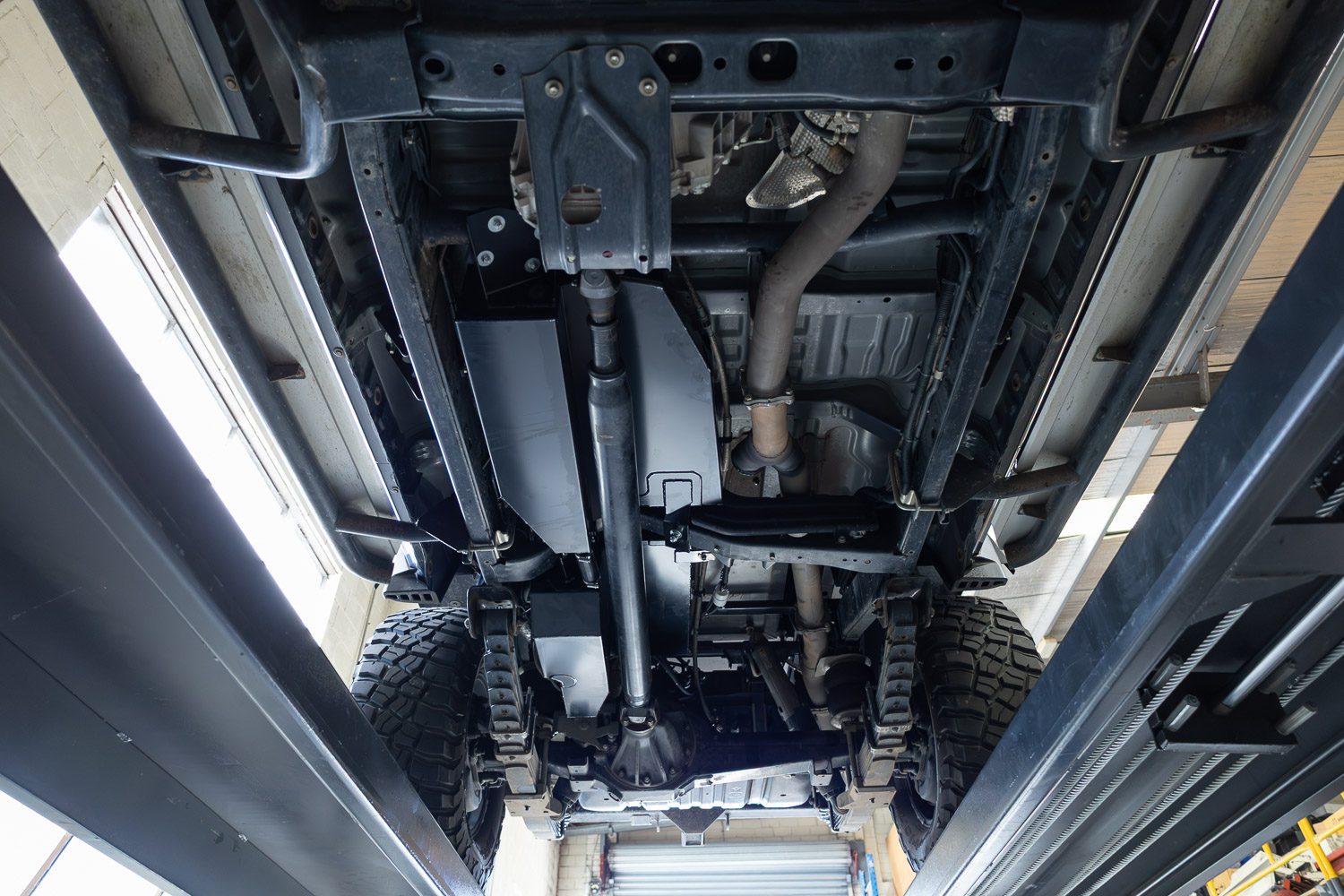

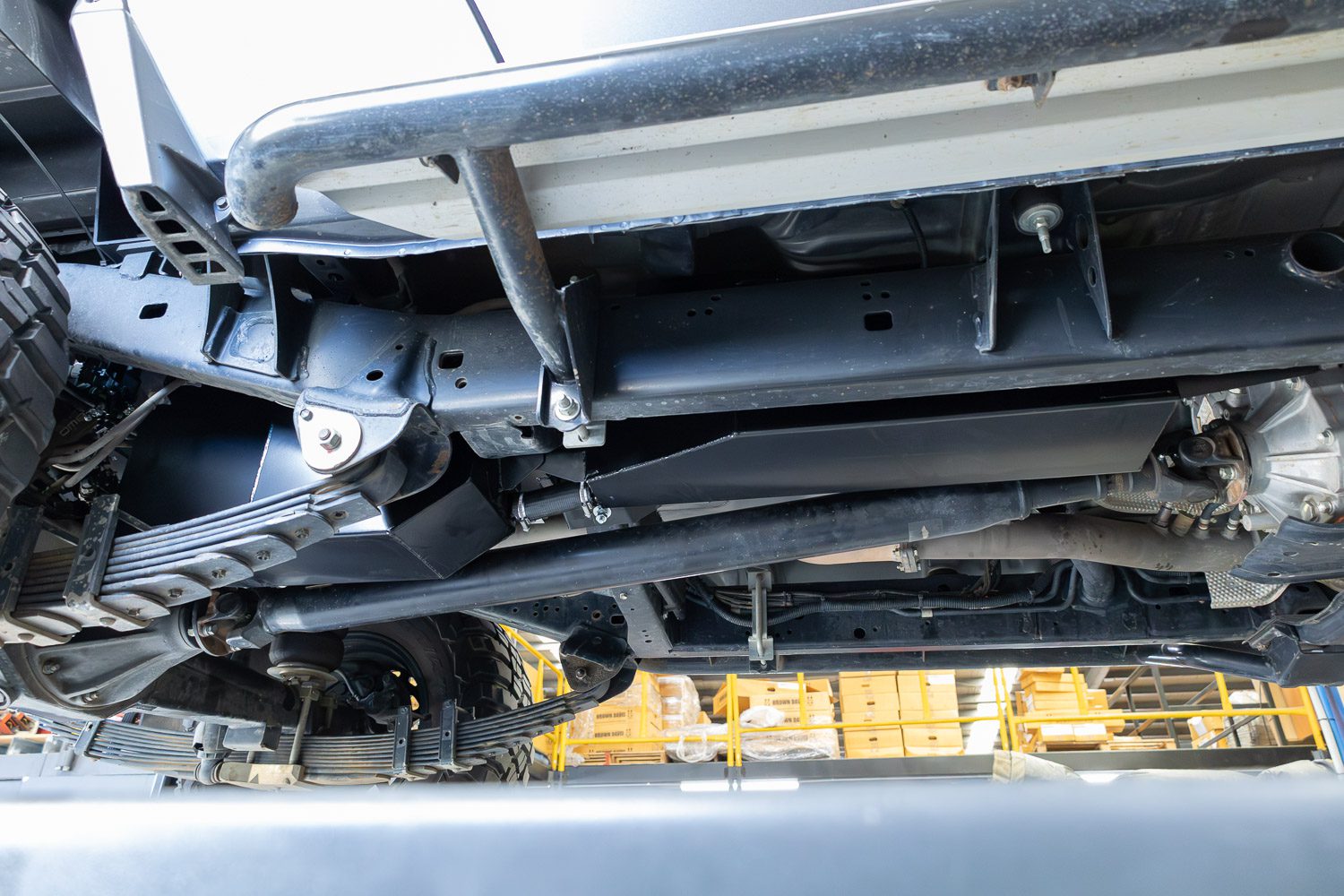

Photos of auxiliary fuel tank installed

Key features of the Toyota Landcruiser 79 Series Auxiliary Tanks

1
2
3
4
5
6
7
8
1

Tapered departure angle

2

Internal baffling system to prevent fuel slosh and strengthen tank structure

3

Gusseted brackets with double thickness pads to spread tank mounting loads

4

Fuel sender unit flange – Excepts supplied sender unit to give fuel level reading

5

filler tube, connects to supplied filler and locking filler cap

6

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

7

Fuel Pick up- supplies fuel to main tank (TL79A2) / supplies fuel to engine (TL79A4)

8

Return- returns overflow from main tank(TL79A2) / returns fuel from engine in (TL79A4)

Patriot Campers use Brown Davis Long Range Fuel Tanks in their 79 series Super Tourers. They push our gear to the limits towing camper trailers alover the country.

Justin – Owner of Patriot Campers

“Patriot Campers has always taken product testing to the limits and hundreds of thousands of kilometres across this country quickly sorts out product faults. We have always run Brown Davis tanks in our tow vehicles.
Being designed and tested in Australia and the company having a strong motorsport heritage, Brown Davis are the only brand of tanks we offer to our customers”

Compatibility

Confirmed fitment

  • Models

    Fits all models 2012-Present – fits with DPF

    TL79A4- DIESEL ONLY

    TL79A2- PETROL AND DIESEL

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN.

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Top of tank sits at same high as chassis tray mounts

  • Exhuasts

    Fits with most aftermarket exhausts – Larger single exhausts are fine. Some dual exhausts may interfere.

International vehicles

  • Confirmed fitment

    TL79A2- Confirmed on petrol models – Middle East, South Africa, Mongolia

    TL79A4- Confirmed on diesel models- South Africa, Middle East

Brown Davis Auxiliary tanks now compatible with South African 79 Series Tubs

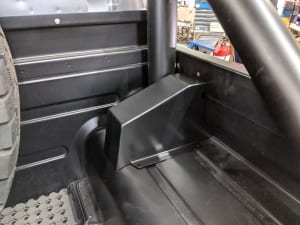

Optional filler kit with filler protection cover available for 79 series dual cabs

Instructions supplied

The Brown Davis Toyota Landcruiser 79 Series Auxiliary Fuel Tanks comes instructions that walk you through the installation. Some fuel system and wiring knowledge is needed for this install

Vehicle Driving Range

FIGURES BASED ON 79 SERIES D/C (as quoted by Toyota)
 10.7 LITRES PER 100KM

  • –
    –
  • 130 litre standard tank
  • 110lt BD front tank + 130lt standard rear tank
    240 Litres total
  • Fuel Consumption- Diesel (10.7LT)
  • 1214.95km
  • 2242.99km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 130 litre standard tank
  • 84.62% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

84.62% increase

NEED EVEN MORE FUEL?

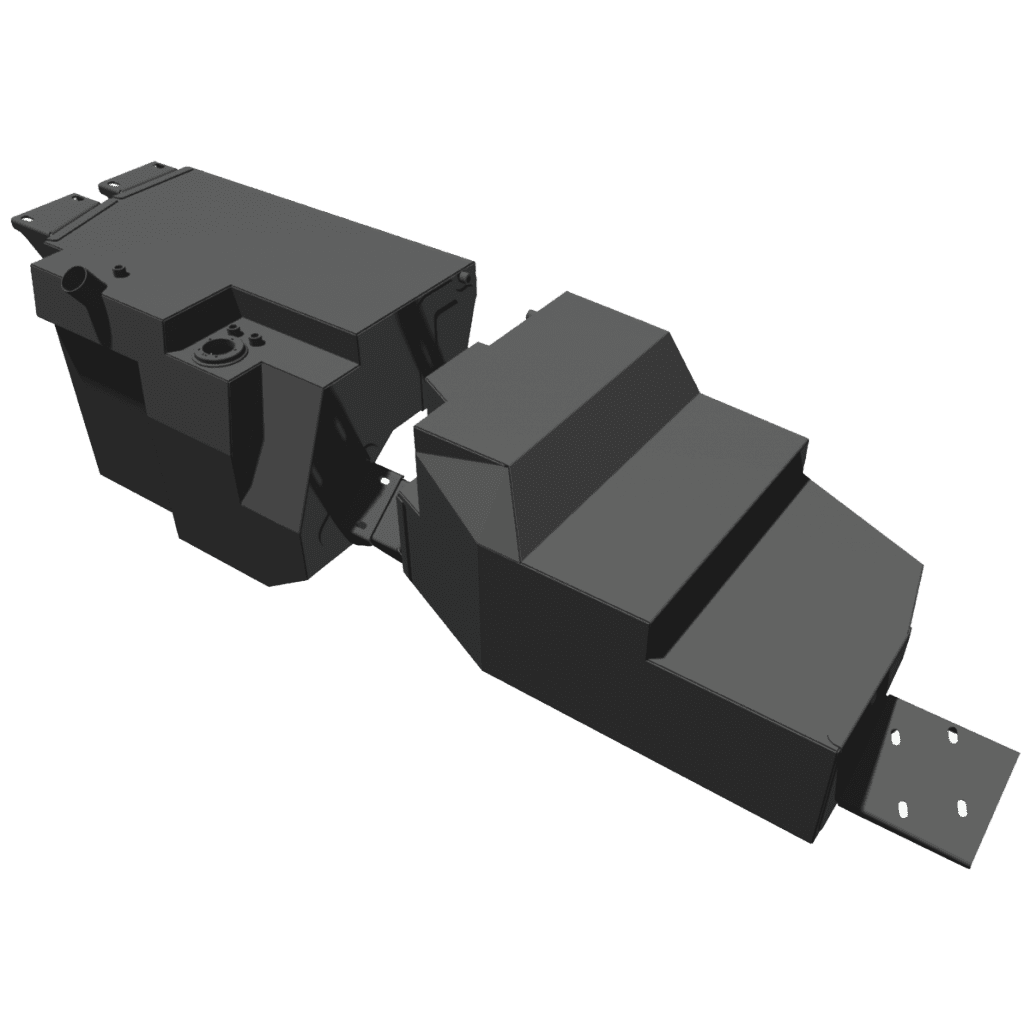

Combine the 110 Litre Auxiliary Tank with the Brown Davis 185 Replacement Tank for a Total Fuel Capacity of 295 Litres

TOYOTA LANDCRUISER – 79 SERIES

PART NUMBER: TL79R5 (DIESEL) TL79R5-P (PETROL)
TANK TYPE: REPLACEMENT
CAPACITY:185 LITRE
FILLER POINT:STANDARD
TANK LOCATION: REPLACES STANDARD REAR TANK
FITTING TIME: 3.5 hour/s

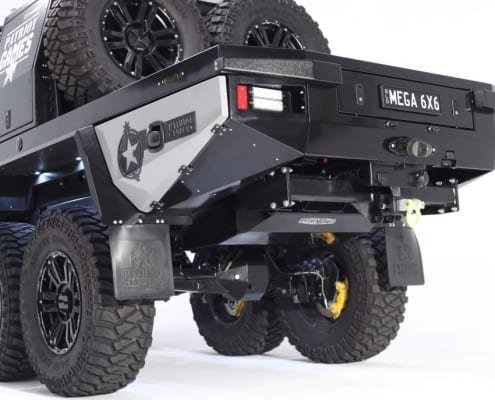

Own a Modified 79 Series Land Cruiser?

Check out our Range of Tanks to Suit your Vehicle

Check out our Range of products for the Toyota Land cruiser 79 Series
