TOYOTA LANDCRUISER 76 SERIES WAGON (08/2012 – ONWARDS)

75 LITRE AUXILIARY LONG RANGE FUEL TANK

FITMENT CONFIRMED ON 2024 V8 ENGINE – DOES NOT FIT 2.8LT ENGINE

Brown Davis is proud to release a mid-chassis long range auxiliary fuel tank for the Toyota Landcruiser 76 Series V8 (2012 – onwards). Whilst the Brown Davis 185 Litre Rear Tank Replacement for the 76 Series has been offered for some time, a mid-chassis auxiliary tank is a first for the Wagon 76 Series!

The Brown Davis 75L Auxiliary Fuel Tank takes the Toyota Landcruiser 76 Series from a decent 130L fuel capacity to a massive 205L. Say goodbye to range anxiety and hello to the most remote of adventures with a predicted increased fuel range of 1915 kms! Furthermore, this Brown Davis Auxiliary Tank is located in the middle of the vehicle, making it ideal for weight distribution.

The Landcruiser 76 Wagon Auxiliary Tank fits with most aftermarket single exhausts. Twin Exhausts however may require alteration. The base of the Brown Davis tank follows the line of the vehicles chassis, having no effect on the vehicles ground clearance or ramp over.

Specifications

TANK TYPE: AUXILIARY
CAPACITY: 75 LITRE
PART NUMEBR: TL76A4
FILLER POINT: STANDARD
TANK LOCATION: DRIVERS SIDE UNDER MIDDLE OF VEHICLE
FITTING TIME: 5 hour/s
MODIFICATIONS: NONE REQUIRED
COMMENTS: NO EXHAUST MODIFICATIONS REQUIRED

INDEPENDENT FUEL FEED SYSTEM

PART NUMBER: TL76A4

This system is designed as a change over system, which means at the flick of a switch the driver can independently feed the engine directly from either the main or Brown Davis auxiliary tank.  This allows you to manage weight distribution by draining the rear tank first to keep weight forward of the rear axle. This is the same system as the early 79 Series single cabs and 100 series with twin tanks.  All parts and hardware for install are supplied.

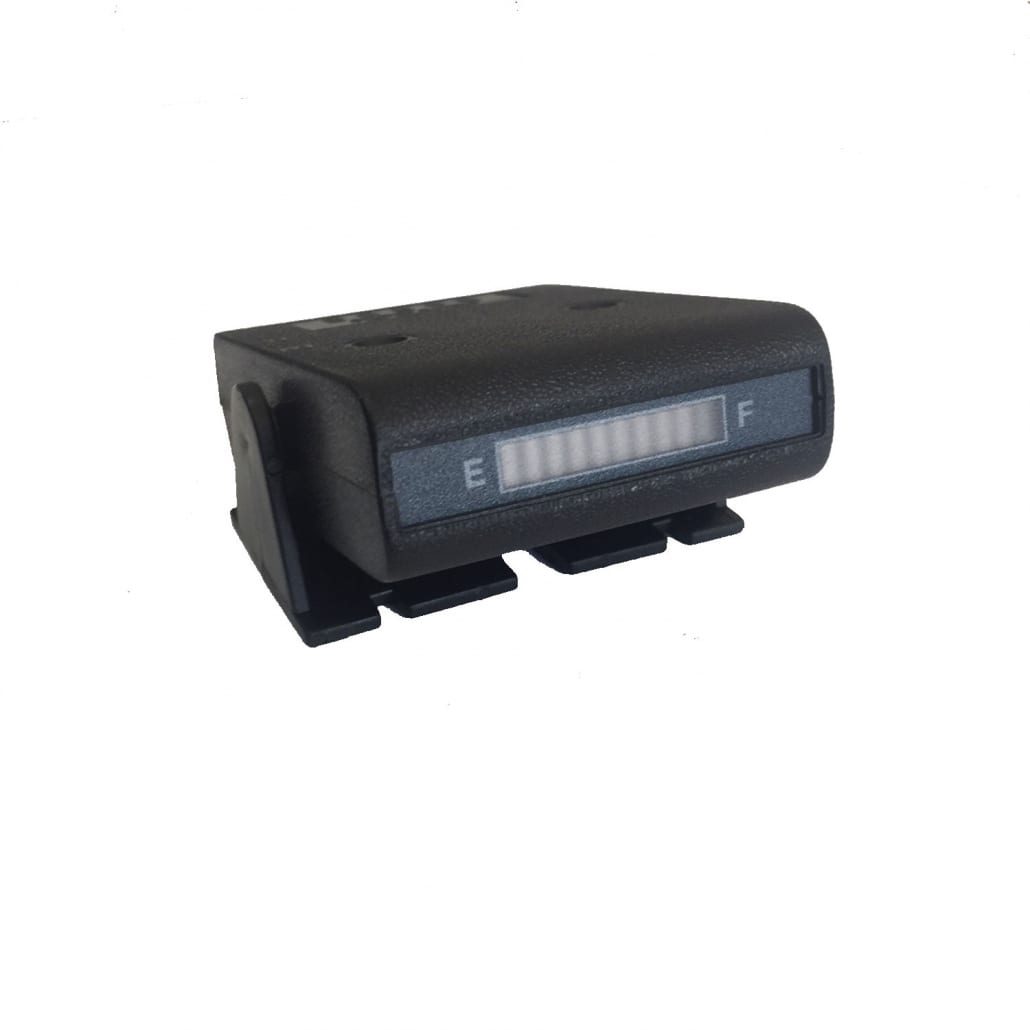

LED Auxiliary Gauge

Led gauge supplied in the independent feed system to monitor the fuel level in the auxiliary tank. Installed typically under the dash above the gear stick in a 79 series

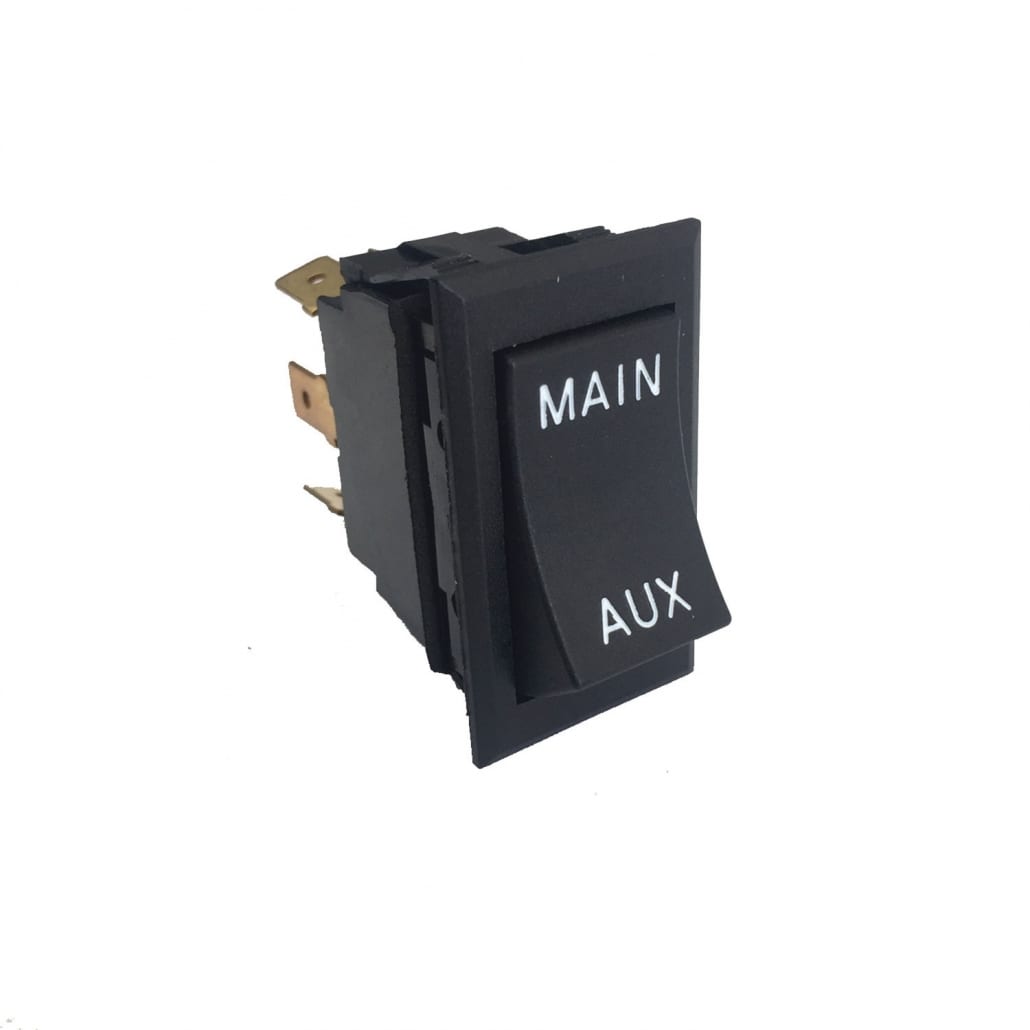

MAIN/AUX Rocker Switch

Allows you to quickly choose which tank you wish to feed the engine from. Installed in a factory Toyota switch knockout.

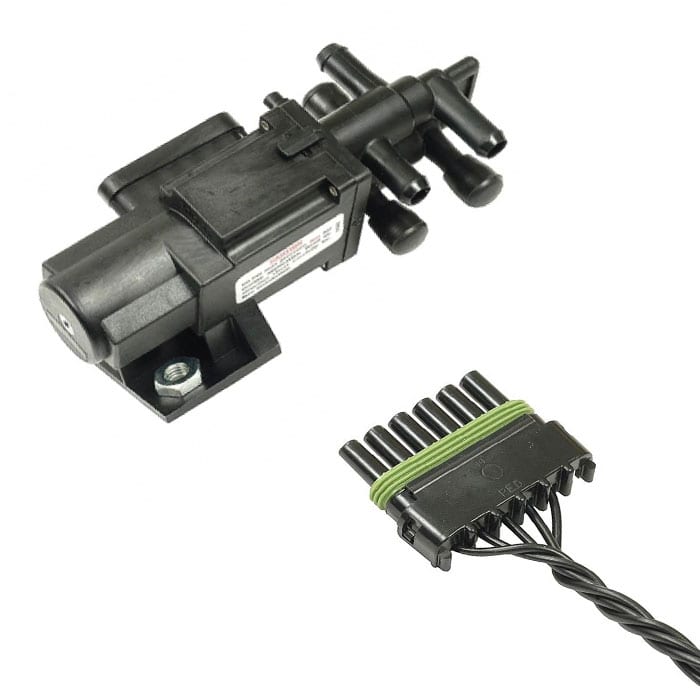

6 Port Change Over Valve

Function:

  • Feed from main tank
  • Return to main tank
  • Feed from auxiliary tank
  • Return to auxiliary tank
  • Feed engine
  • Return from engine
Follow a manual added link
Follow a manual added link

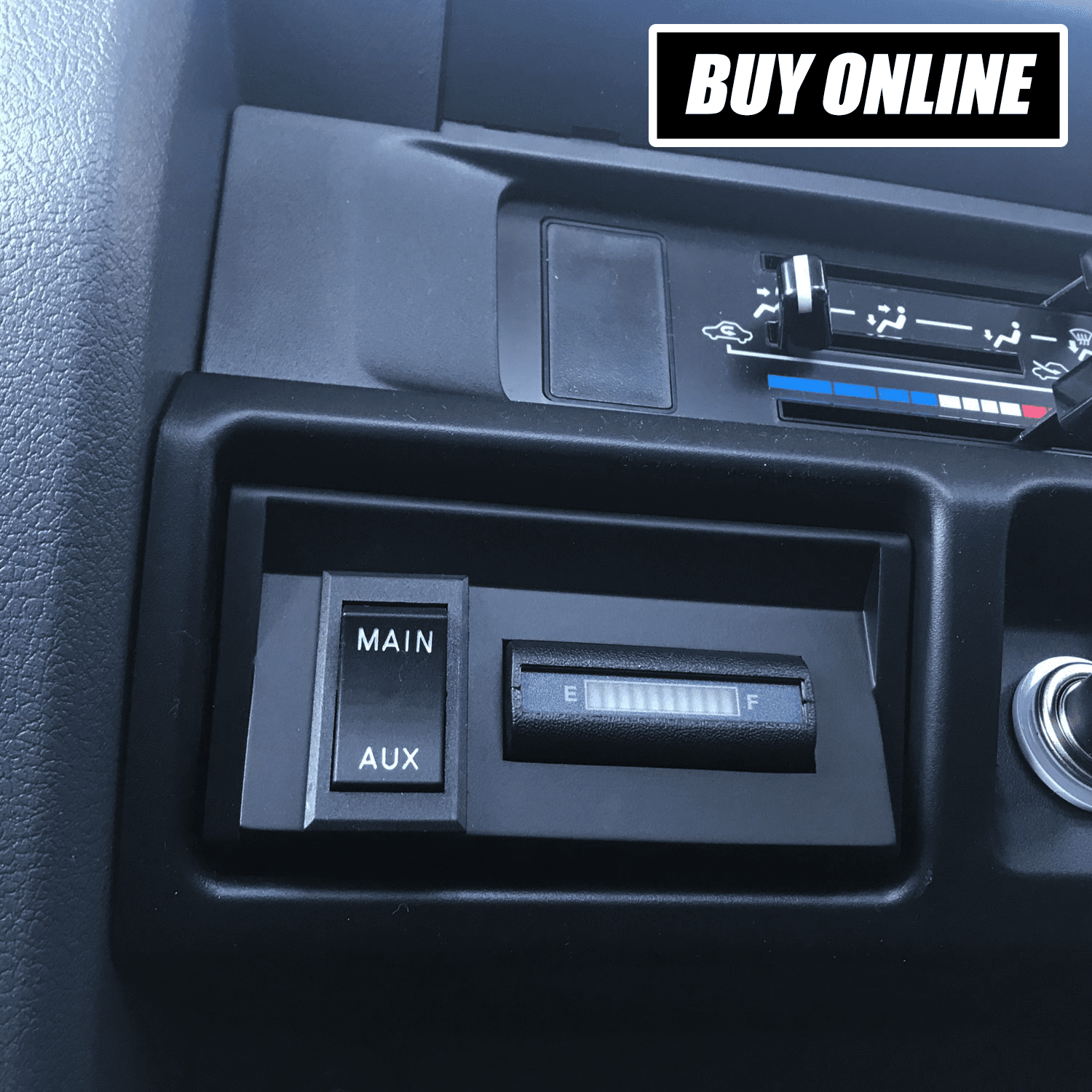

Ash / Cigarette Tray Insert

Keep your dash and console looking clean! Brown Davis has now developed a Ash Tray insert to mount your auxiliary tanks gauge and MAIN/AUX switch!

  • Black console insert
  • Compatible switch and gauge
Follow a manual added link

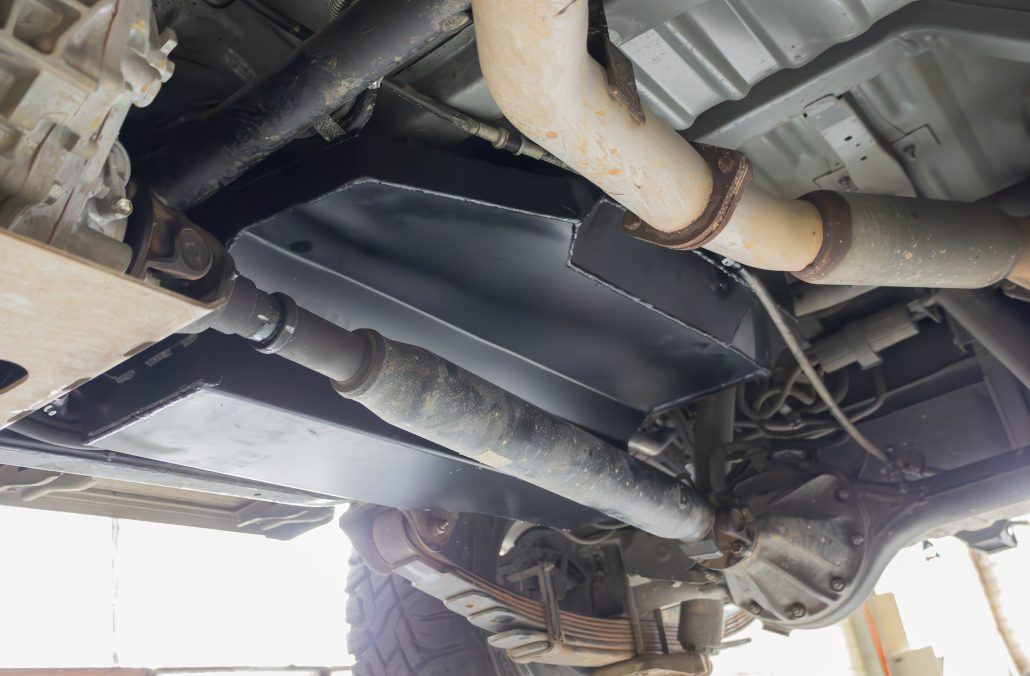

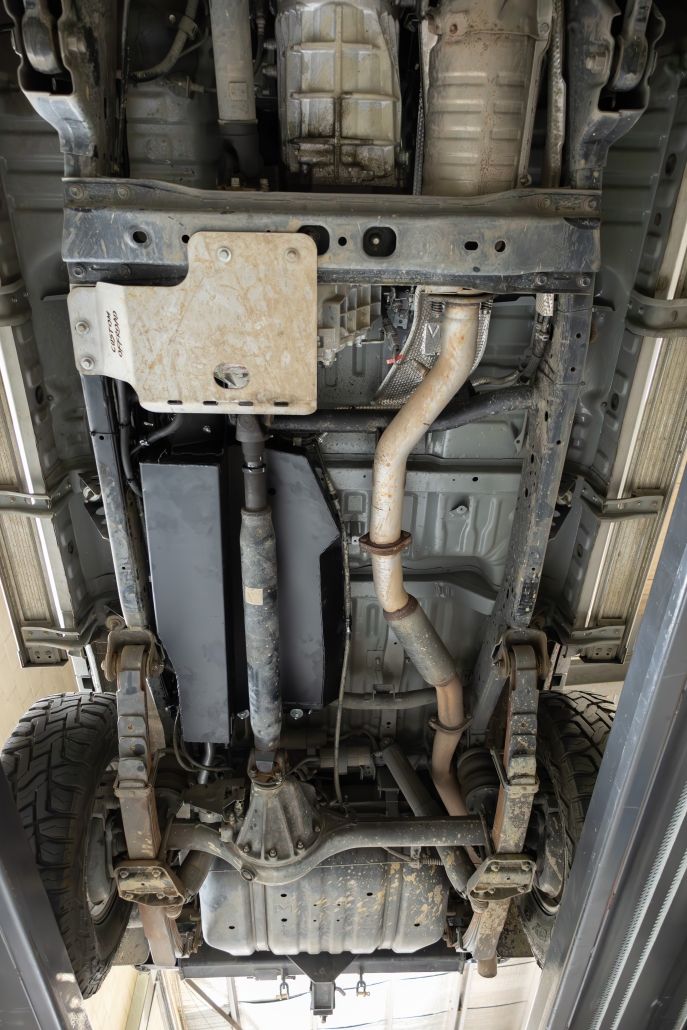

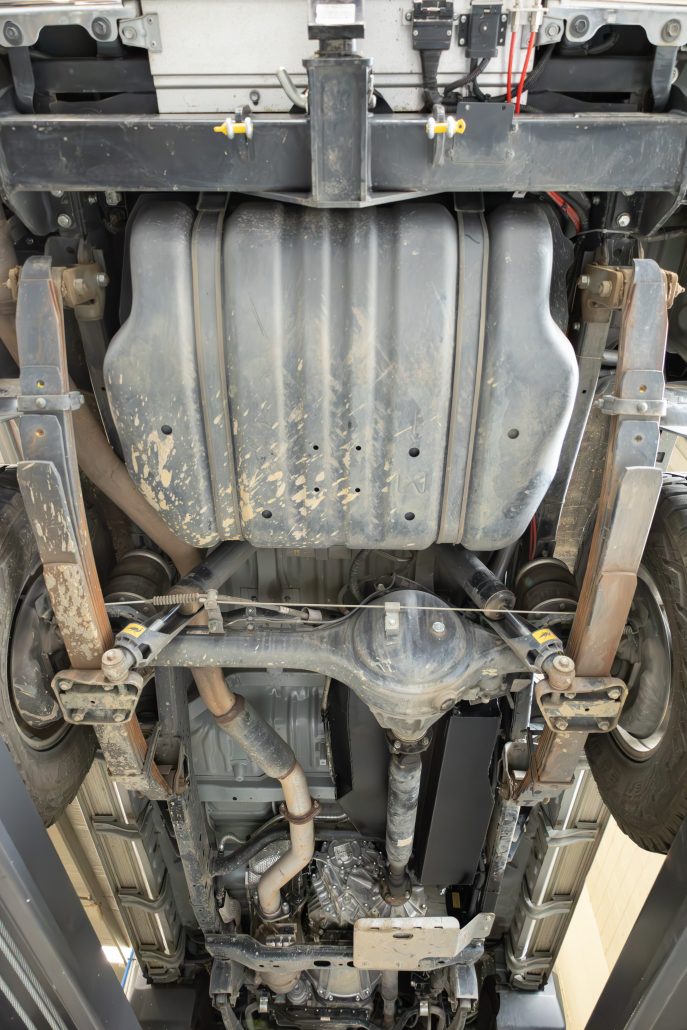

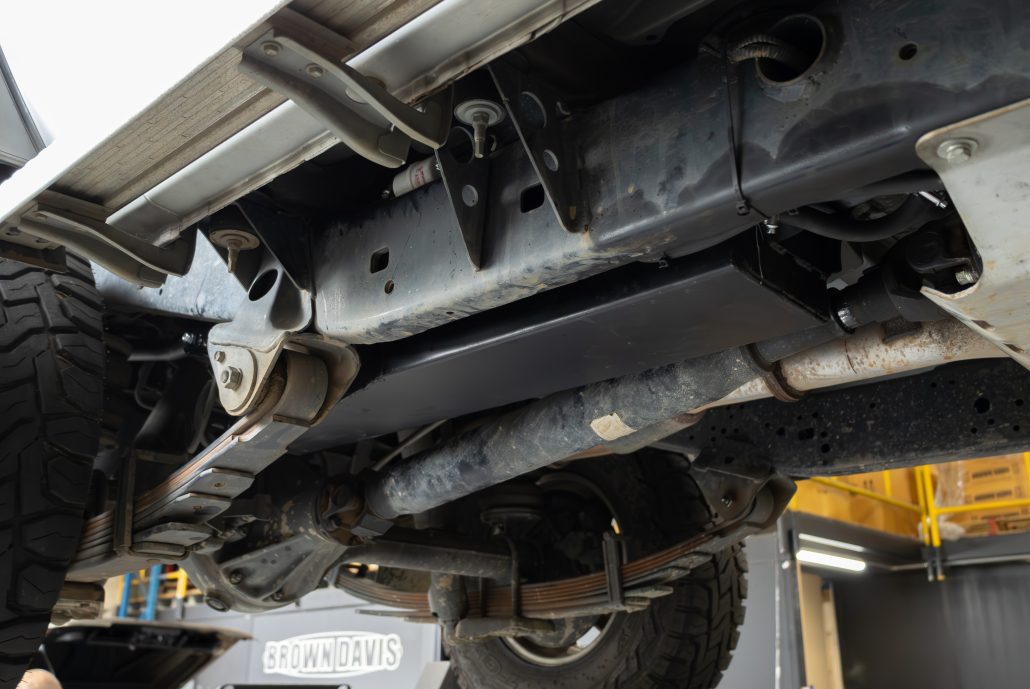

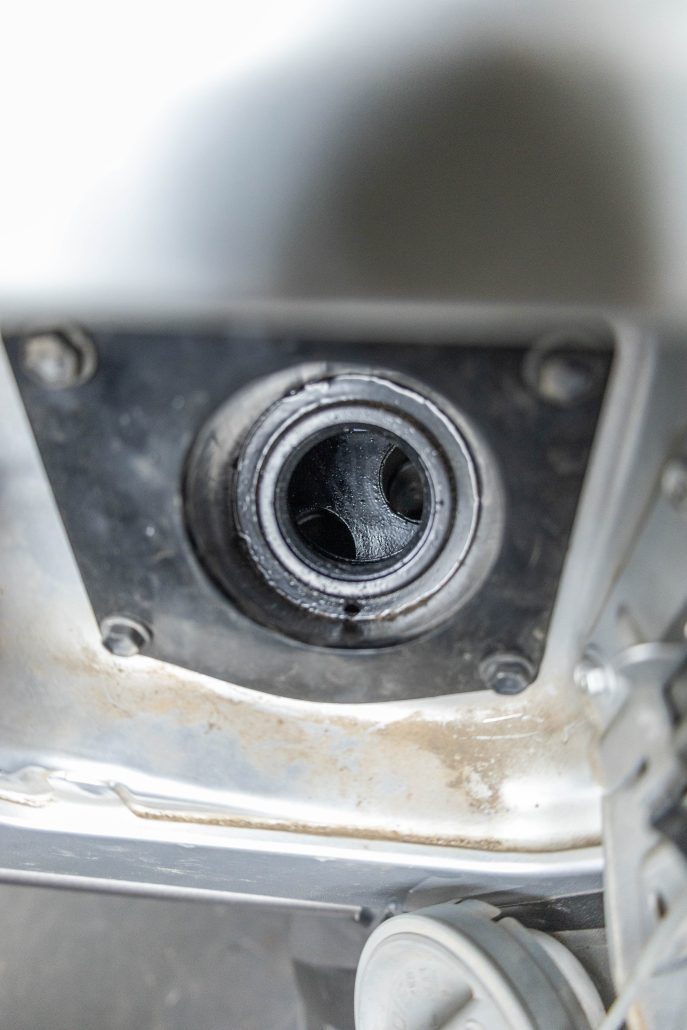

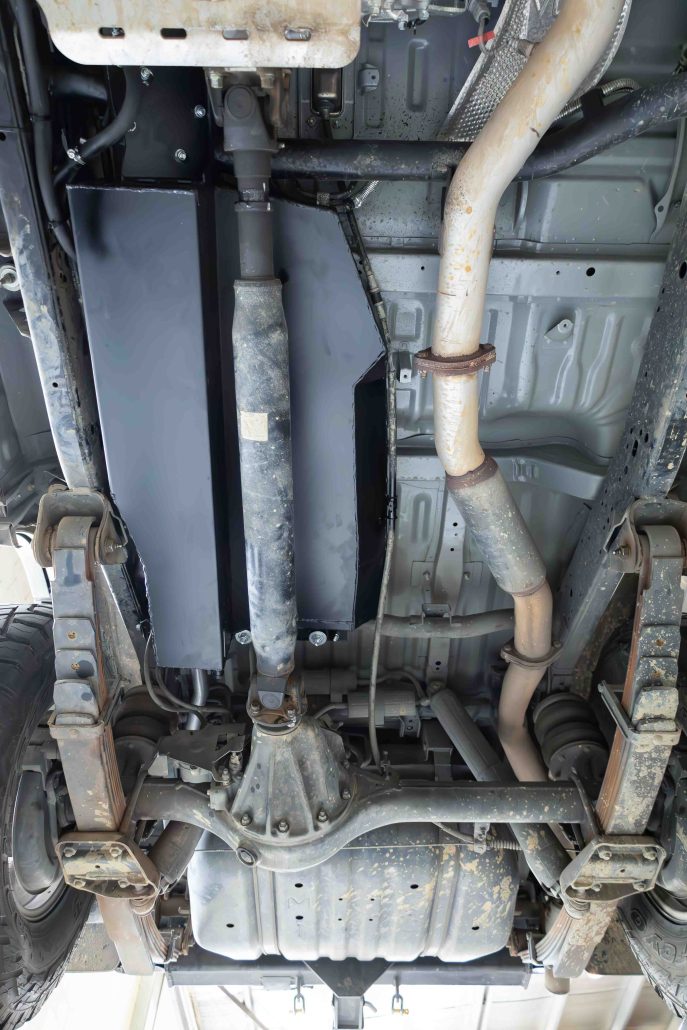

Photos of auxiliary fuel tank installed

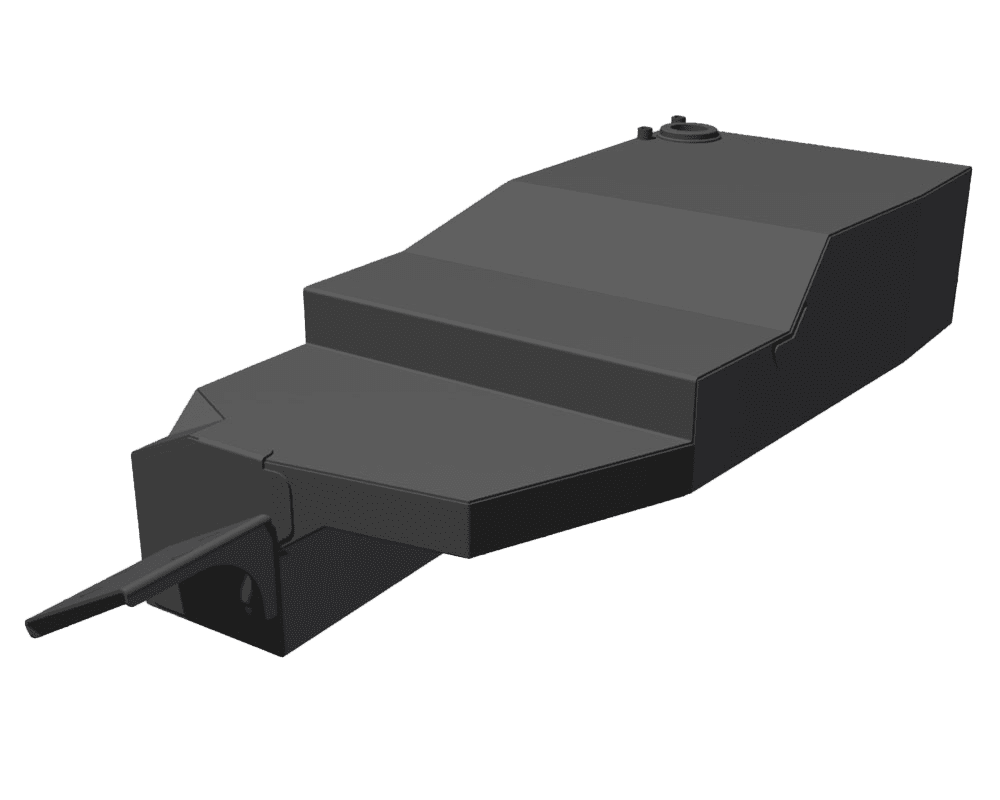

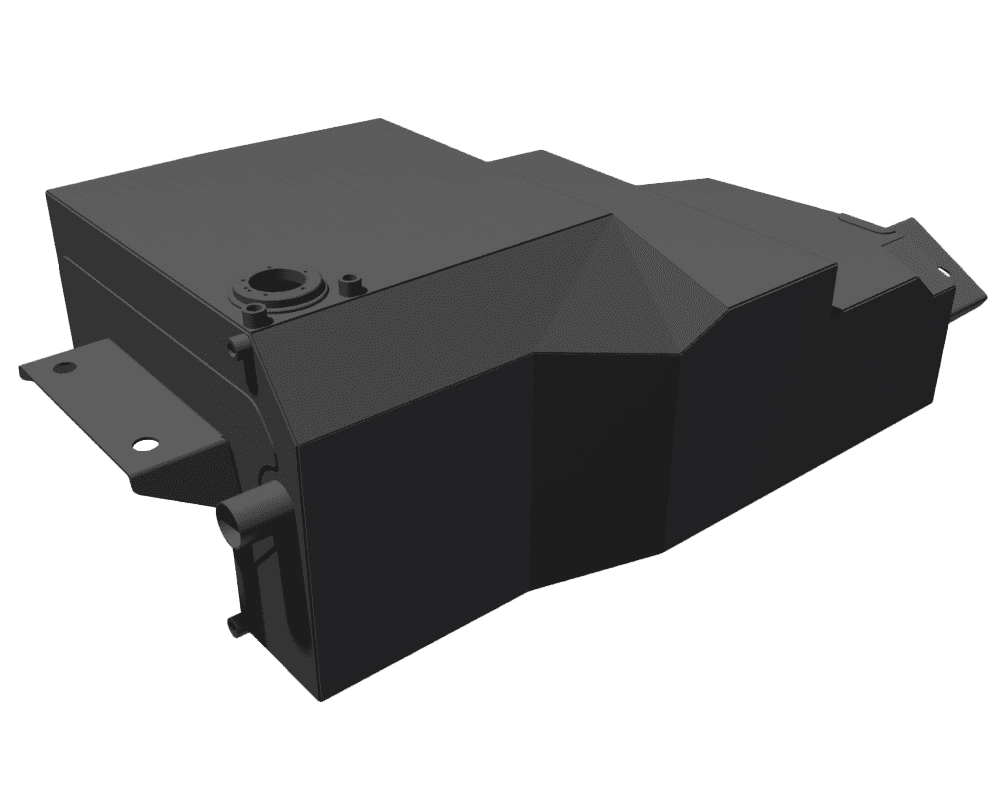

Key features of the Toyota Landcruiser 76 Series Auxiliary Tanks

1
2
3
4
5
6
7
1

Internal baffling system to prevent fuel slosh and strengthen tank structure

2

Gusseted brackets with double thickness pads to spread tank mounting loads

3

Fuel sender unit flange – Excepts supplied sender unit to give fuel level reading

4

filler tube, connects to supplied filler and locking filler cap

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Fuel Pick up – supplies fuel to engine (TL76A4)

7

Return – returns fuel from engine in (TL76A4)

Compatibility

Confirmed fitment

  • Models

    Fits all models with 130L tank (08/2012 – present) – fits with DPF

    TL76A4- DIESEL ONLY

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN.

  • Exhuasts

    Fits with most aftermarket exhausts – Larger single exhausts are fine. Some dual exhausts may interfere.

Instructions supplied

The Brown Davis Toyota Landcruiser 76 Series Auxiliary Fuel Tanks comes instructions that walk you through the installation. Some fuel system and wiring knowledge is needed for this install

Vehicle Driving Range

FIGURES BASED ON 76 SERIES D/C (as quoted by Toyota)
 10.7 LITRES PER 100KM

  • –
    –
  • 130 litre standard tank
  • 75lt BD front tank + 130lt standard rear tank
    205 Litres total
  • Fuel Consumption- Diesel (10.7LT)
  • 1214.95km
  • 1915.88km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 130 litre standard tank
  • 57.69% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

57.69% increase

NEED EVEN MORE FUEL?

Combine the 75 Litre Auxiliary Tank with the Brown Davis 185 Replacement Tank for a Total Fuel Capacity of 260 Litres

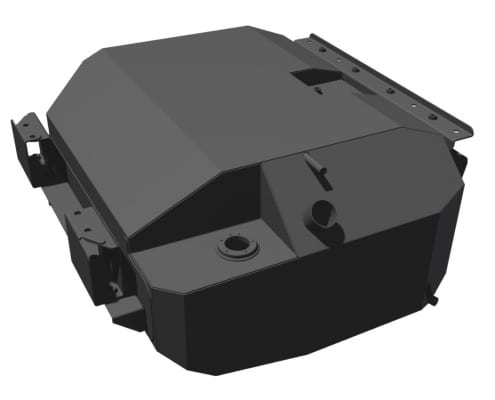

TOYOTA LANDCRUISER – 79 SERIES

PART NUMBER: TL79R5 (DIESEL) TL79R5-P (PETROL)
TANK TYPE: REPLACEMENT
CAPACITY:185 LITRE
FILLER POINT:STANDARD
TANK LOCATION: REPLACES STANDARD REAR TANK
FITTING TIME: 3.5 hour/s

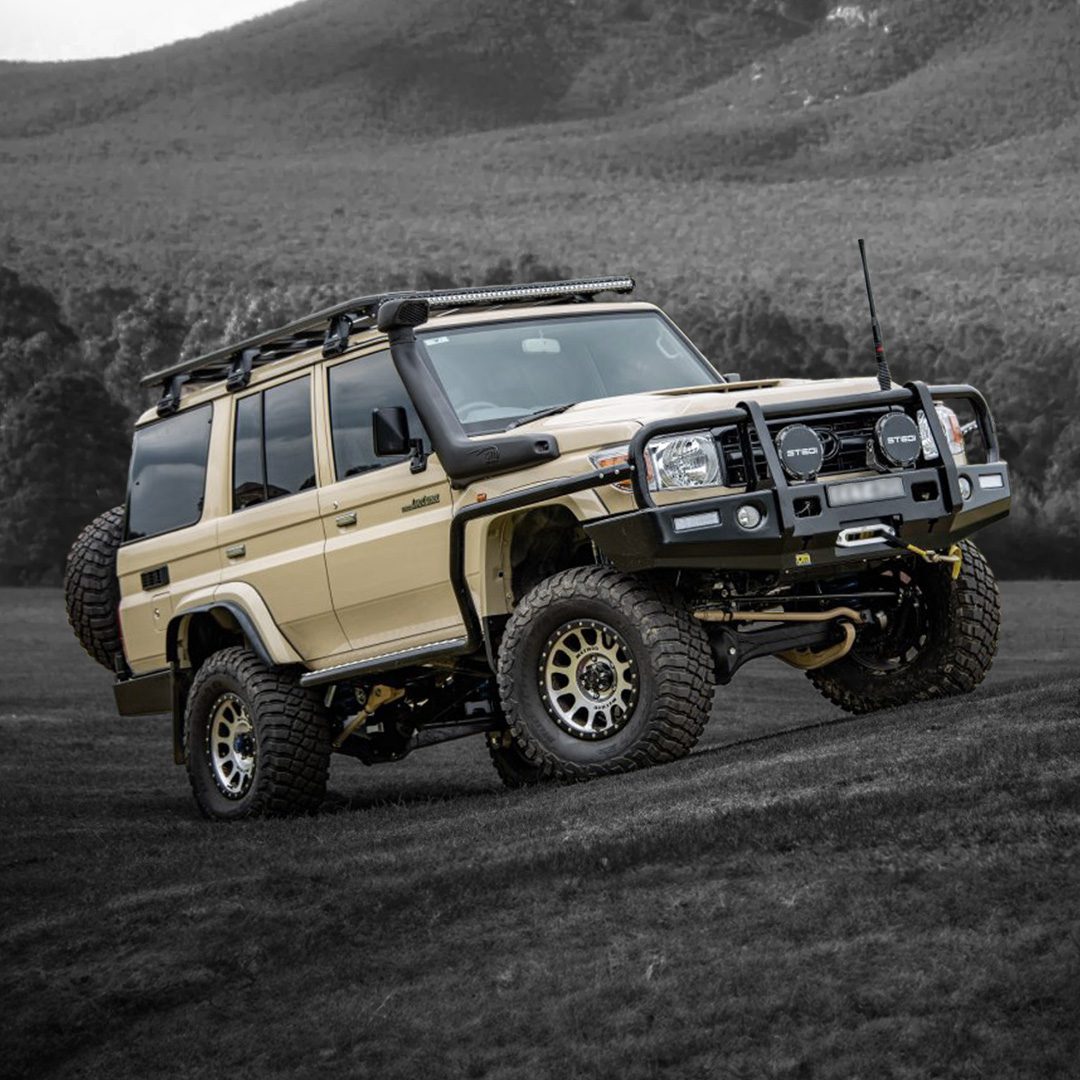

Own a Modified 76 Series Land Cruiser?
