TOYOTA LANDCRUISER 40 SERIES SWB (1978-1984)

120 LITRE AUXILIARY LONG RANGE FUEL TANK

Specifications

PART NUMBER: TL40A1
TANK TYPE: INDEPENDENT FEED AUXILIARY
CAPACITY: 120 LITRE
FILLER POINT: Y JUNCTION FILLER
FUEL SUPPLY METHOD: INDEPENDENT ENGINE FEED
TANK LOCATION: UNDER REAR
FITTING TIME: 6 hour/s
MODIFICATIONS: SOME EXHAUSTS MODS MAY BE REQUIRED

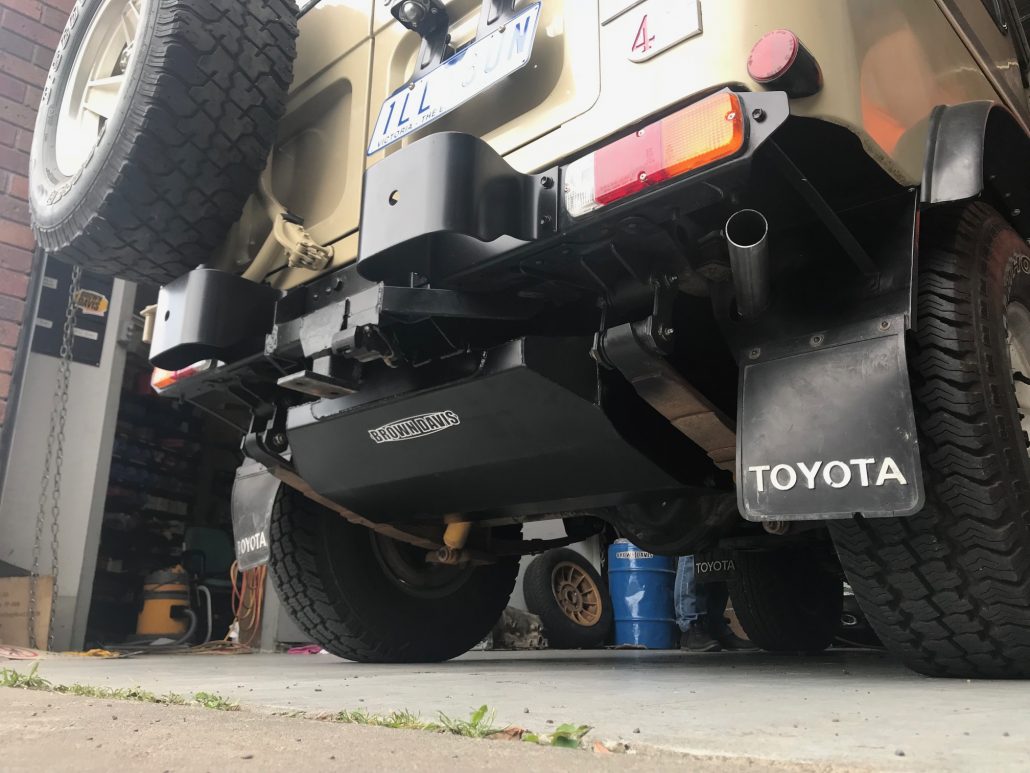

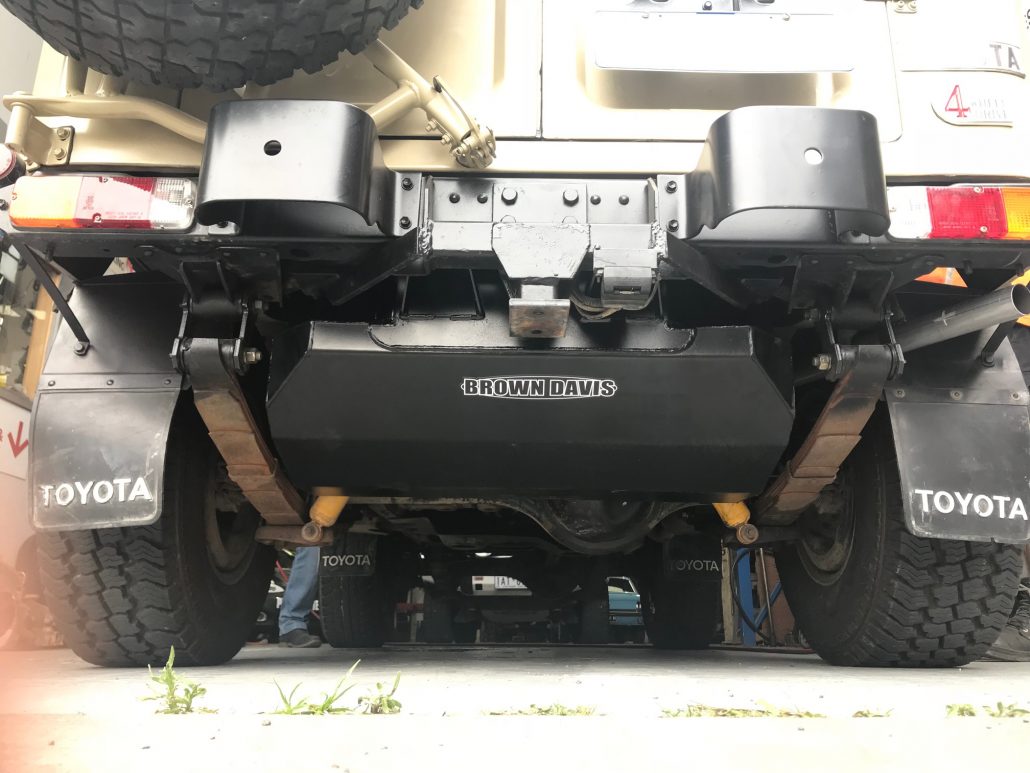

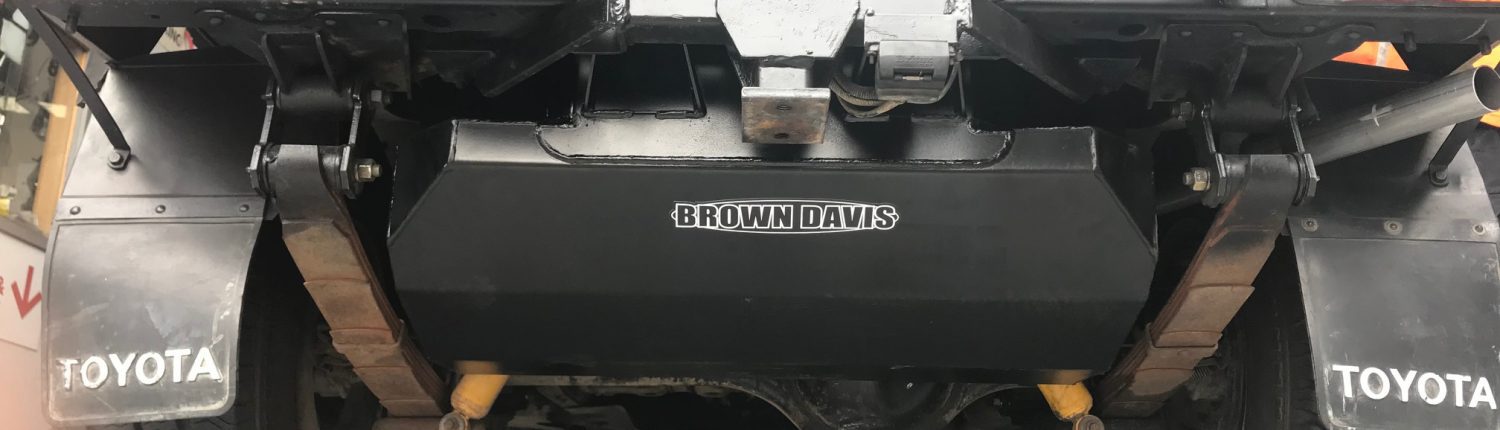

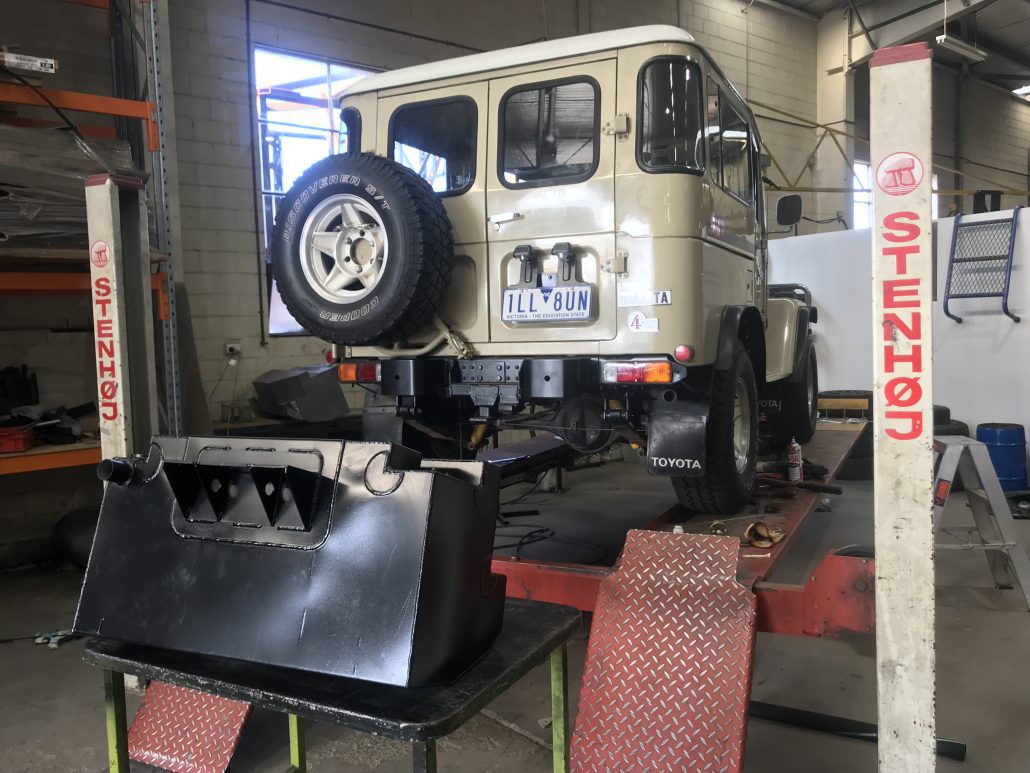

The Brown Davis 120 litre auxiliary long range fuel tank triples the Toyota Landcruiser 40 Series Short Wheel Base fuel capacity and driving range. The Brown Davis Auxiliary Independent Fuel System is installed so at the flick of a switch the driver can independently feed the engine directly from the vehicles main tank or the Brown Davis auxiliary tank. This allows the operator to empty either tank to evenly distribute weight across the vehicle. (ie: empty the rear tank first for towing purposes.) This is the same system as used in the early Land Cruiser 79 series single cabs and 100 series with twin tanks. All parts and hardware for installation are supplied.

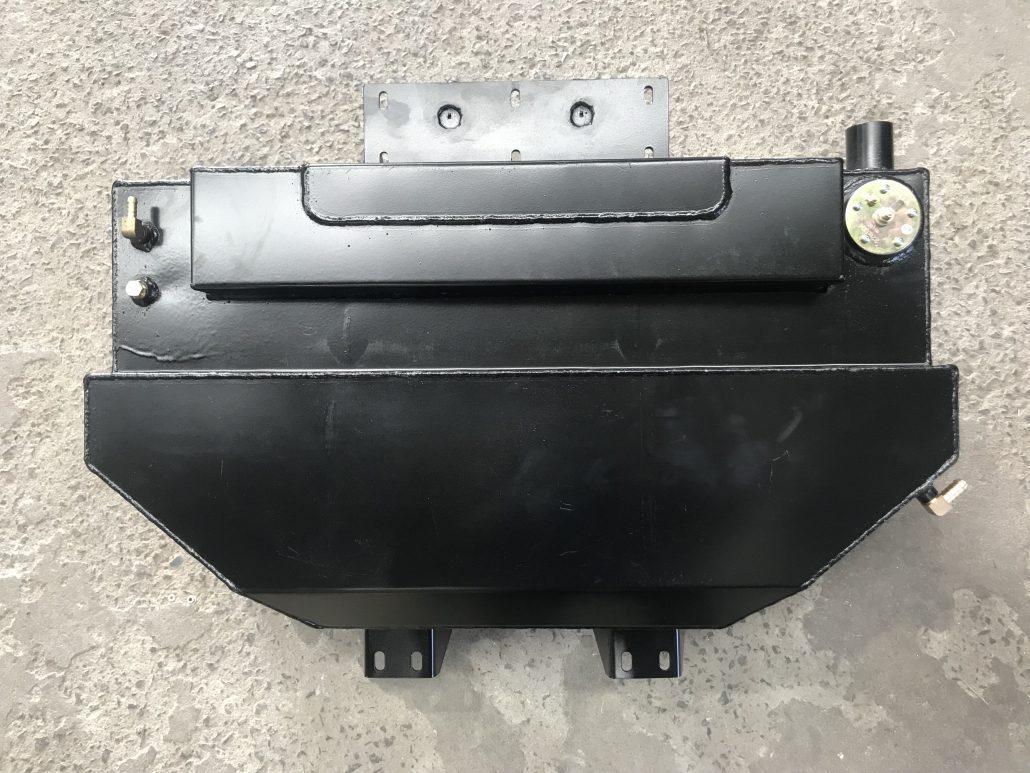

Key features of the Brown Davis 40 Series Auxiliary Long Range Fuel Tank

1
2
3
4
5
6
7
1

Tapered departure angle

2

Gusseted brackets with double thickness pads to spread tank mounting loads

3

Fuel sender unit flange – Excepts supplied sender unit to give fuel level reading

4

filler tube, connects to supplied filler and Y junction filler

5

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

6

Fuel Pick up- supplies fuel to engine (TL79A4)

7

Return- returns fuel from engine

Fuel Tank Capacity

  • –
    –
  • 60 litre standard tank
  • 60lt front tank + 120lt BD rear tank
    180 Litres total
  • Percentage Increase with
    Brown Davis Long Range Fuel Tank
  • 60 litre standard tank
  • 300% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

300% increase

Step by Step DIY instructions supplied

The Brown Davis 40 Series auxiliary long range fuel tank comes with instructions that walk you through the installation. Knowledge of wiring and fuel plumbing is required

Warranty and Surport

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.

Brown Davis Long Range Fuel Tanks

Taking people around Australia since 1978
