MITSUBISHI TRITON ML,MN,MQ,MR

138 LITRE REPLACEMENT LONG RANGE FUEL TANK

Brown Davis 138lt Replacement Long Range Fuel tank for the Mitsubishi Triton series from ML-MR. When designing ute replacement tanks we aim to double the vehicles fuel capacity.

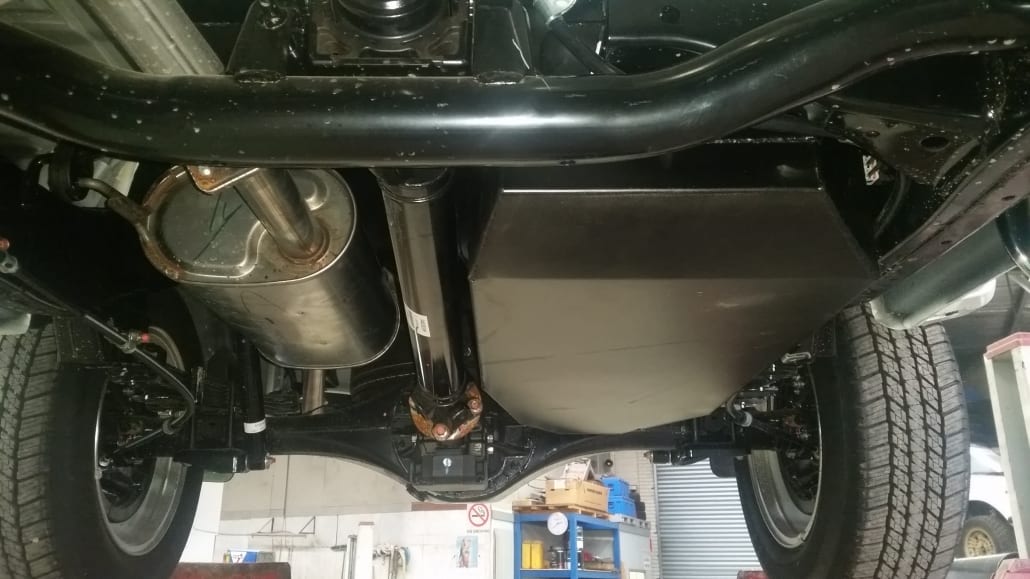

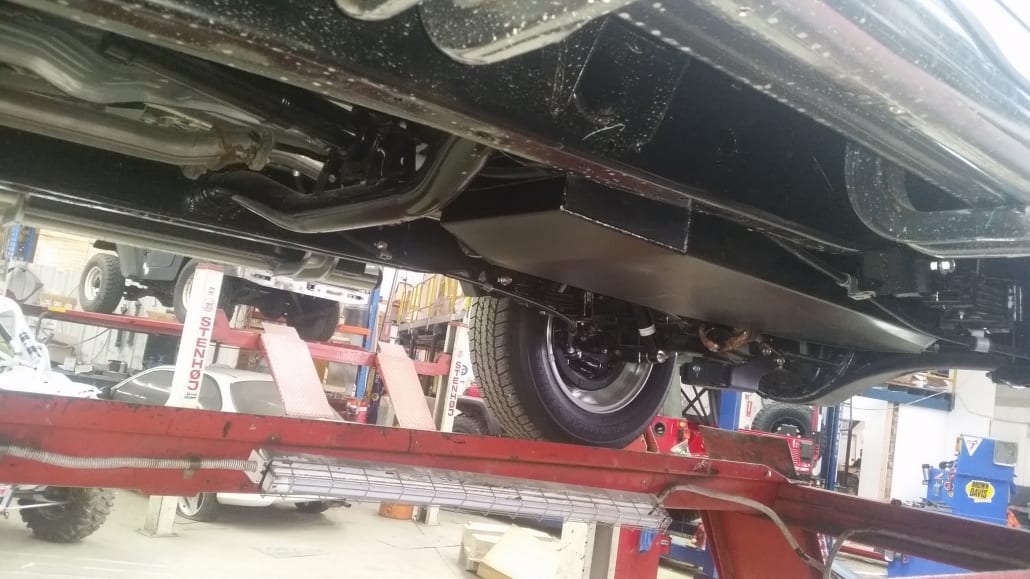

To get the 98.56% increase in capacity, the Brown Davis tank sits approximately  20mm lowers then the vehicles standard tank. While the tank might sit slightly lower then the standard tank, the vehicles ramp over has not been affected.  Like most Brown Davis long range tanks, the Triton tank has a tapered approach angle to prevent frontal impacts.

Brown Davis Replacement tanks utilise factory components making for a quick and simple 3 hour install with no modifications required.

Specifications

PART NUMBER: DIESEL (MT15R1) PETROL (MT15R2)
TANK TYPE: REPLACEMENT
CAPACITY: (132LT USABLE) 138 LITRE
FILLER POINT: STANDARD
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: REPLACES VEHICLES STANDARD TANK
FITTING TIME: 3 hour/s
MODIFICATIONS: NONE REQUIRED

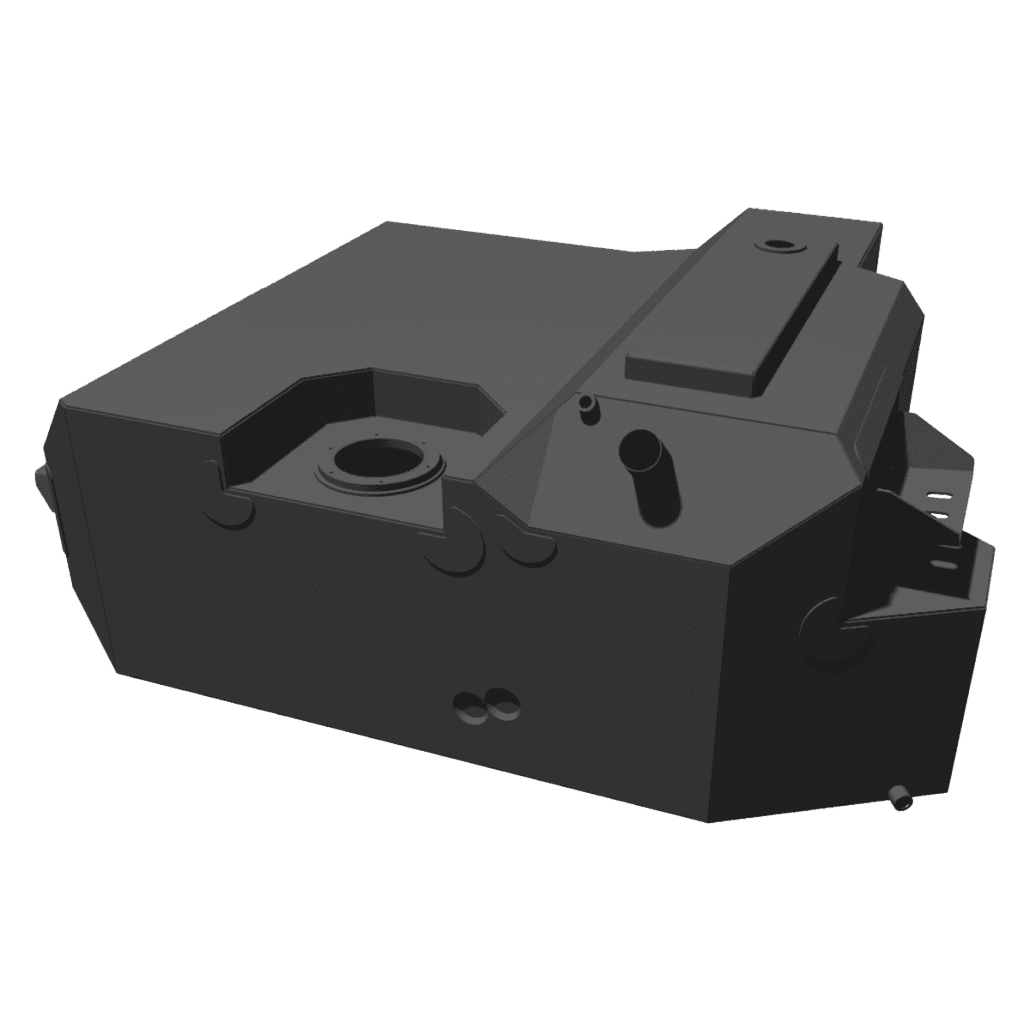

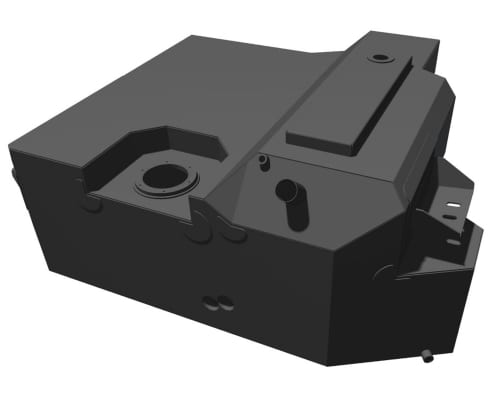

Key features of the Mitsubishi Triton Replacement Long Range Fuel Tank

1
2
3
4
5
6
7
1

Internal baffling system to prevent fuel slosh and strengthen tank structure

2

Gusseted brackets with double thickness pads to spread tank mounting loads

3

Fuel pump sender flange designed to re-use vehicles original equipment

4

Roll over check valve and expansion box for fuel expansion and venting

5

filler tube, connects to vehicles original filling point

6

Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)

7

Drain plug- for draining bad fuel

Step by Step DIY instructions supplied

The Brown Davis Ford Ranger tank comes with step by step instructions that walk you through every step of the install.

Vehicle Driving Range

FIGURES BASED ON DUAL CAB 4X4 GLX– AS QUOTED BY MITSUBISHI

MANUAL 8.1 LITRES PER 100KM / AUTOMATIC 9.3 LITRES PER 100KM

  • Total
    Litres
  • 70 Litre Standard Tank
  • 139 LitreBrown Davis Long Range Fuel Tank
  • Fuel Consumption
    Manual (8.1T) / Auto (9.3LT)
  • 864.2km / 752.7km
  • 1716.04km / 1494.62km
  • Percentage Increase
    Brown Davis Long Range Fuel Tank
  • 70 Litre Standard Tank
  • 98.56% Increase in Capacity

Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.

98.56% increase

Compatibility

Confirmed fitment

  • Models

    ML 2006-2009 4wd
    MN 2009-2014 4wd
    MQ 2015-2018 4wd
    MR 2019-Present 4wd

Standard vehicles features

  • Distance till empty

    In short, the distance to empty function on your trip computer will not remain accurate with your new tank. Your vehicles ECU has the volume of the original tank calibrated to it. As the Distance to Empty counts down, the float starts to move from Full to empty, because the volume of the tank has changed dramatically without changing any reference data for the ECU to base it’s calculations on, the Distance to Empty is incorrect.

    Your fuel gauge will remain accurate, as the float inside the tank will indicate how much fuel is inside the tank, so your readings going from Full, to ¾ to ½ right down to empty will remain accurate as it is now. Your average fuel consumption calculations will remain accurate too, just not DTE.

    What we tell our customers is that most or our Long Range Tanks will tend to ‘hang’ on full for a while longer than it did originally, simply put there’s more volume to be used before the float starts to move downward. Your low fuel warning light will work as intended.

    The best tip we culd give you is to reset your trip meter every time you fill your tank, over time you’ll be able to establish how far you can travel in different driving conditions.

Aftermarket Accessories

  • Suspension

    Fits with most aftermarket suspension and air bag suspension – confirmed with OME (ARB), TJM, EFS, PEDDERS, IRON MAN, TUFF DOG, DOBSONS, AIR BAG MAN

  • Alloy and Steel Trays

    Fits with most aftermarket trays – Filler may need relocating after tank fitment. Some under tray draws may interfere with tank.

  • Exhausts

    Fits with most aftermarket exhausts. Confirmed on Redback, Big Boar and Taipan.

  • Underbody Dual Battery Trays

    Fits with most dual battery trays – confirmed on ARB, Pirahna and the BD Tray

Warranty and Support

3 YEAR WARRANTY

For total peace of mind Brown Davis offers a 3 year warranty on all its fuel tanks. With an Australia wide network built over the 30+ years in the industry, you can go away on your longest journey knowing you will have full support with any issues.

Check out our Range of Products for the Mitsubishi Triton

Now available to purchase online

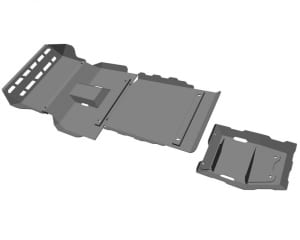

Under Vehicle Protection
Pre Fuel Filter Kits
