DRAIN PLUG
ALL BROWN DAVIS STEEL FUEL TANKS COME WITH A DRAIN PLUG FOR DRAINING CONTAMINATED FUEL OR EVEN COLLECTING SOME FUEL FOR A MATE.
Brown Davis manufactures a wide range of both Steel and Poly tanks so finding the right type of tank for your vehicle is crucial. Many factors need to taken into account so below are the highlights of both our steel and poly long range fuel tanks.
STEEL LONG RANGE FUEL TANKS
For 4WDs and tourers planning to head off the beaten track, our aluminized steel Long Range Fuel Tank is the best option.
POLY LONG RANGE FUEL TANKS
For fleet managers and customers sitting primarily on surfaced road, poly long range fuel tanks is a great option.
Justin from Patriot compares steel and poly Long Range Fuel Tanks

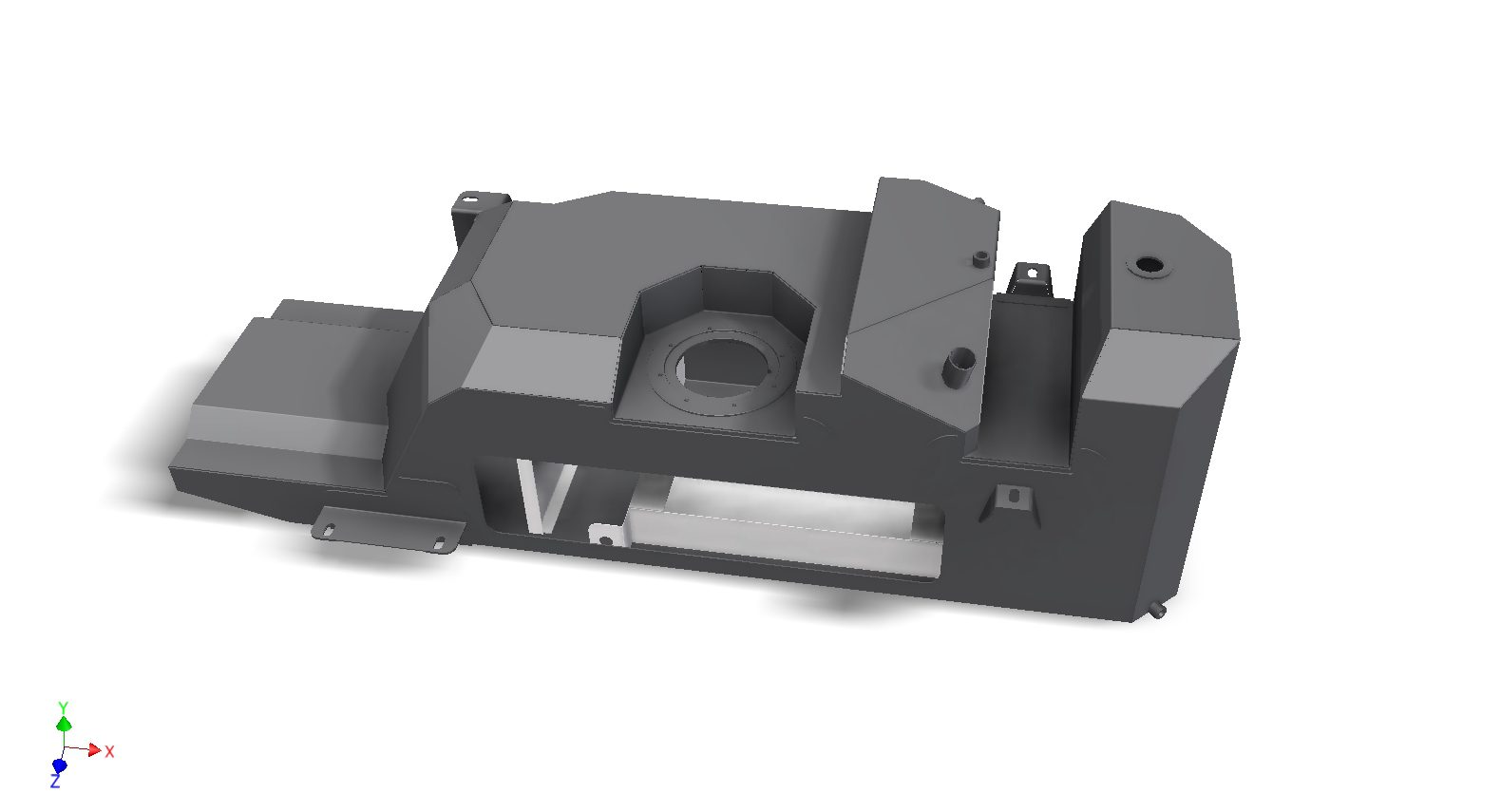

Key features of Brown Davis Aluminised Steel Long Range Fuel Tank?
1
2
3
4
5
6
7
8
9
10
1
Tapered approach angle to reduce frontal impact and improve ramp over clearance
2
Fuel baffling system to prevent fuel slosh and to strengthen tank structure
3
Gusseted brackets with double thickness pads to spread tank mounting loads
4
Fuel pump sender flange designed to re-use the vehicle’s original equipment
5
Swirl pot designed to carrel fuel around the pick up point
6
Roll over check valve and expansion box for fuel expansion and venting
7
Fast fill breather for rapid filling and to reduce bowser shut off
8
Filler tube, connects to vehicles original filling point
9
Cushion clamps to retain fuel lines to prevent damage and kinking
10
Magnetic drain plug, horizontal and flush mounted to prevent damage

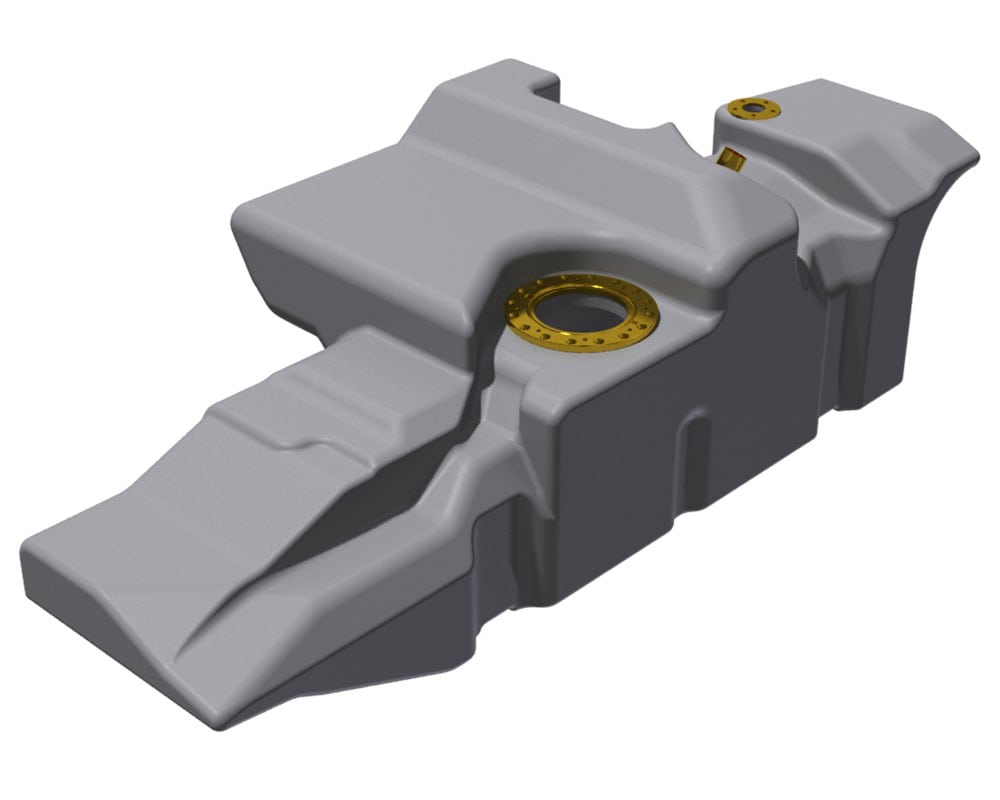

Key features of Brown Davis Poly Long Range Fuel Tank?
1
2
3
4
5
6
1
Tapered approach angle to reduce frontal impact and improve ramp over clearance
2
Fuel pump sender flange designed to re-use vehicles original equipment
3
Roll over check valve and expansion box for fuel expansion and venting
4
Filler tube, connects to vehicles original filling point
5
Fast fill breather for rapid filling and to reduce bowser shut off (works with fast fill)
6
Fuel line locators- for ease of fitment and to prevent kinking
AUXILIARY FUEL TANK GAUGE AND BUZZER
Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.
THE LED GAUGE WILL SHOW TANK LEVEL AT ALL TIMES EVEN IF PUMP IS NOT RUNNING.
WHEN BUTTON IS PRESSED THE PUMP WILL BEGIN TRANSFERRING FUEL ACROSS TO YOUR VEHICLES MAIN TANK. THE ROUND YELLOW LED LIGHT SHOWS PUMP IS RUNNING
AS FUEL IS BEING TRANSFERRED ACROSS THE LED LIGHTS WILL SHOW FUEL LEVEL REMAINING IN YOUR AUXILIARY TANK. AT ANY STAGE YOU CAN PRESS THE BUTTON AND STOP THE TRANSFER OF FUEL.
WHEN TANK IS COMPLETELY EMPTY A BUZZER WILL SOUND AS A REMINDED TO TURN THE PUMP OFF. LEAVING FUEL PUMPS ON FOR LONG PERIODS OF TIME CAN BURN THEM OUT
Step by Step DIY Instructions
The Brown Davis Chevrolet Silerado 2500 tank comes with step by step instructions that walk you through every step of the install.
Building a Brown Davis Tank
Since the beginning, Brown Davis has taken pride in the construction of our tanks, our Next-Gen Ranger tank is no exception. Our tanks are made with quality and care, from the materials we use to the stringent pressure testing, they are prepared for the harshest conditions.
Laser Cut Aluminized Steel
Manufacturing our steel tanks starts with laser cut aluminized steel. With this material, your tank will have the strength and durability of steel, and the anti-corrosive properties of aluminum to make sure their is no rust.
Folded Before Welded
Before welding the tank, we use specialized machinery to fold the laser cut aluminized steel to decrease the amount of time and labor put into welding. Folded parts also have superior strength to welded parts.
High Quality Welding Every Time
Next, our experienced welders add the brackets, swirl pot and baffles to the tank and then weld it all off. We use jigs to locate the brackets for each individual tank so installation is as consistent and easy as possible for every vehicle.
Pressure Testing
Lastly, we take it through an air pressure test. This involves a soap test, submersion test and a pressure gauge. These techniques help us identify any rare leaks and where they’re coming from. If air isn’t coming out, fuel definitely isn’t.
Building a tank- A walk through with Matt from The Explore Life
